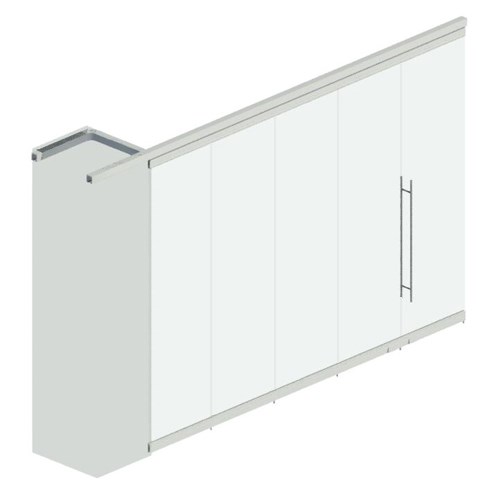

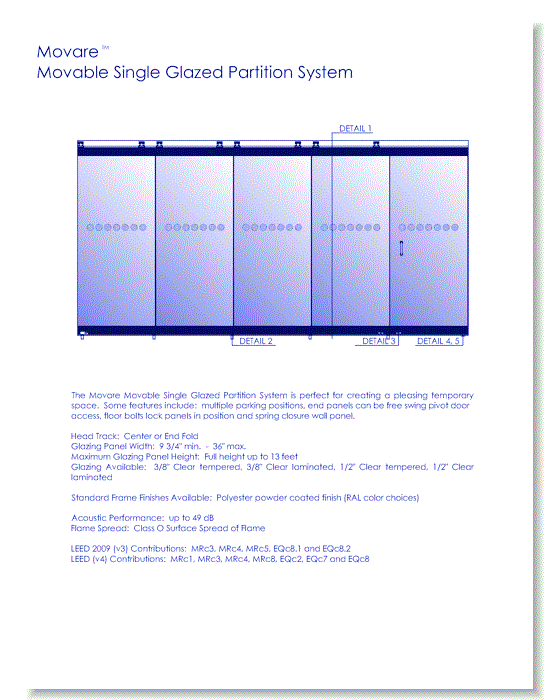

Movable Single Glazed Partition System: Movare™ - Architects Package
The MovareTM Movable Single Glazed Wall System is the ideal solution to efficiently create pleasing temporary interior office and/or commercial space by providing the option to open or enclose large areas when necessary. This system allows multiple parking configurations, end panels which are free swing pivot door access, floor bolts to lock the panels into position and spring closure wall panels.
The maximum panel height is 13’-0”, maximum panel width is 36” (panels may be larger with engineering). Track Configurations may be center or end fold; with single point, twin point or heavy duty roller options. Panel parking options are single point or twin tracks (offset). Glazing options include: Tempered, laminated orLCD glazing. Standard frame finishes include: polyester powder coated finish (RAL), brushed finish, stainless steel finish and custom finishes are also available.
The MovareTM Movable Single Glazed Wall System acoustic performance is rated up to 49 dB Rw. It also is rated with a Class O Surface spread of flame.
The MovareTM Movable Single Glazed Wall System is fully demountable. It’s components contain recycled material and are infinitely recyclable. The System meets LEED Characteristics. LEED 2009 (v3): MRc3, MRc4, MRc5, MRc7, EQc4.2, EQc8.1 and EQc8.2. LEED v4: MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.
