LCD Privacy Smart Glass: Lunar™ - Architects Package

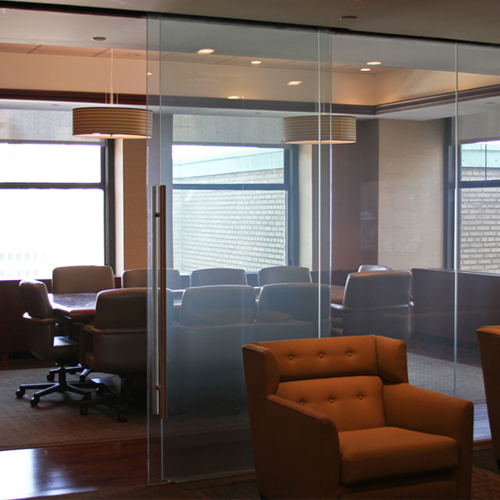

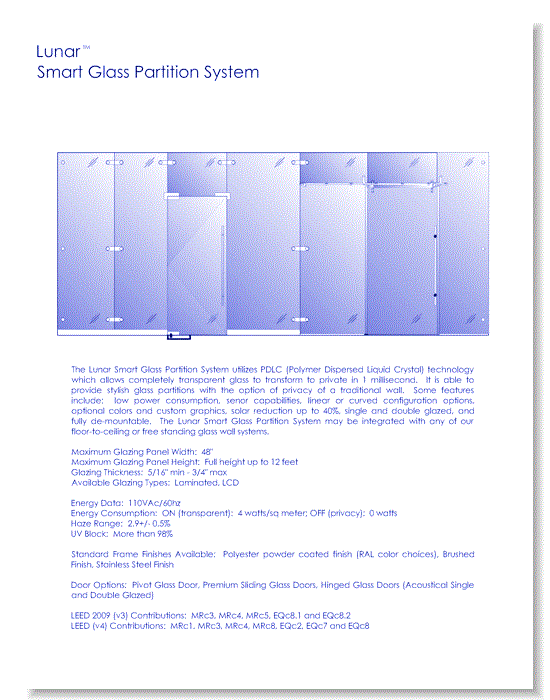

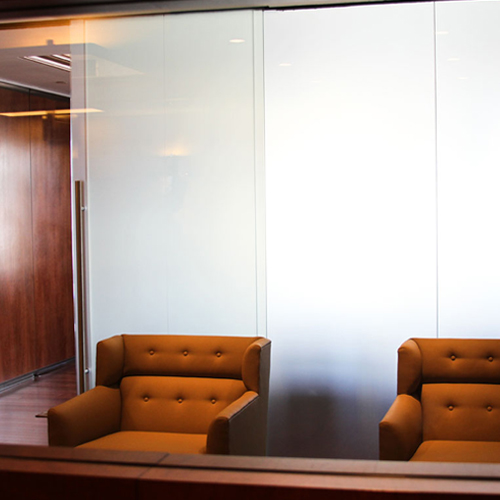

The LunarTM Smart Glass Partition System utilizes PDLC (Polymer Dispersed Liquid Crystal) technology which perfectly balances the privacy of a traditional solid wall and the stylishness of a glass partition.Feature of this system include:  energy consumption of .4 watts/sq meter (ON - transparent) and 0 watts (OFF – privacy), low power usage (110VAC/60hz), sensor capabilities, private to transparent in 1 millisecond, optional colors and graphics and solar reduction up to 40%.  Other features of interest are:  UV Block of more than 98%, Parallel Light transmission 80% (ON – transparent) and Haze range (2.9 +/- 0.5%).

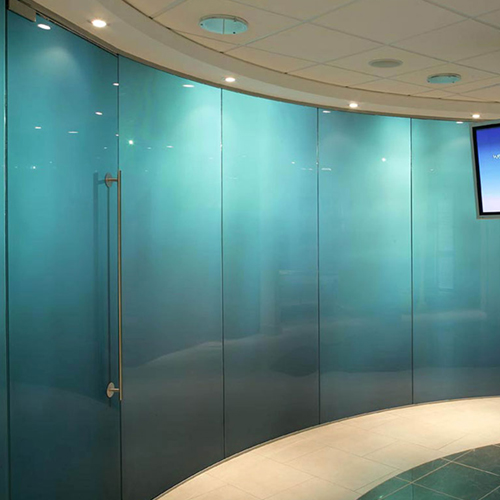

The system accommodates laminated LCD glazing in thicknesses of 5/16” to 3/4".  The maximum panel size is 41”x 144”.  Configurations may be straight, angled or curved.  LCD, pivot, sliding and hinged doors may be installed.  Glass doors (single glazed and double glazed) are all compatible within the system.Standard frame finishes include:  polyester powder coated finish (RAL), brushed finish, stainless steel finish and custom finishes are also available.

The LunarTM Smart Glass Partition System is fully demountable.  It’s components contain recycled material and are infinitely recyclable.  The System meets LEED Characteristics.  LEED 2009 (v3):  MRc3, MRc4, MRc5, MRc7, EQc4.2, EQc8.1 and EQc8.2.  LEED v4:  MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.
