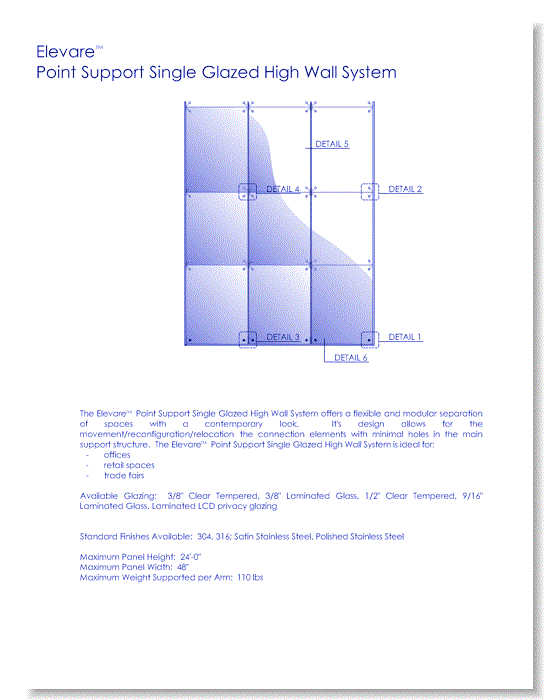

High Wall Glass Partition Systems: Elevare™ Point Support Single Glazed - Architects Package

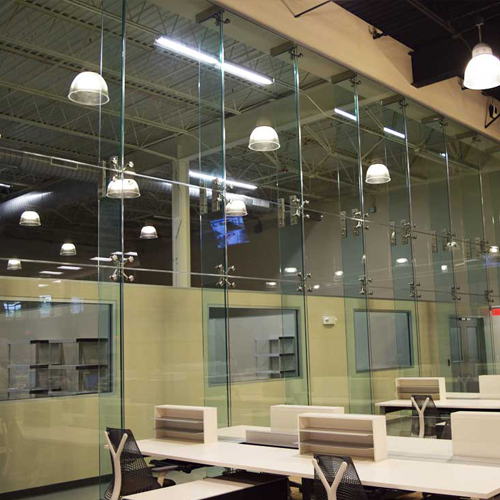

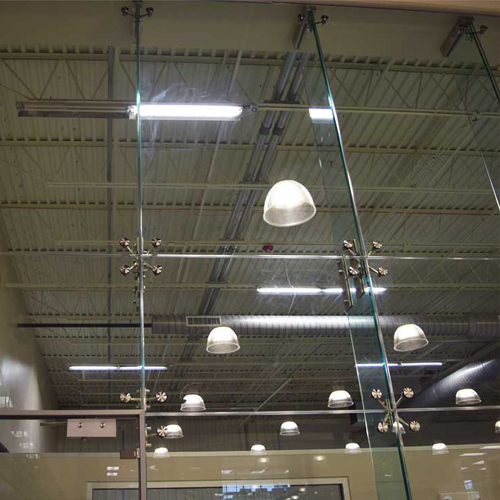

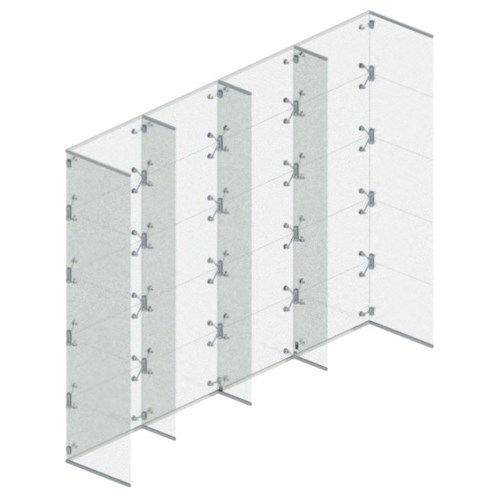

The ElevareTM Point Support Single Glazed High Wall System is an innovative,contemporary looking, complete supporting interior partition system based on the concept of structural facades with the use of vertical glass fins. The system is a completely versatile and suitable for different needs and environments through the widest spectrum of possible combinations. Glass, polycarbonate and wood are all compatible with the support components. All perimeters are fastened to solid walls. The ElevareTM Point Support Single Glazed High Wall System is especially suited for offices, retail spaces and trade fairs.
The maximum panel height is 24’-0”, maximum panel width is 48” (panels may be larger with engineering). Configurations may be straight, angled or curved. LCD, pivot, sliding and hinged doors may be installed. Standard frame finishes include: 304 and 316, Satin Stainless Steel and Polished Stainless Steel.
The ElevareTM Point Support Single Glazed High Wall System is fully demountable. It’s components contain recycled material and are infinitely recyclable. The System meets LEED Characteristics. LEED 2009 (v3): MRc3, MRc4, MRc5, MRc7, EQc4.2, EQc8.1 and EQc8.2. LEED v4: MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.
