Amarr 2502 Series


  • Ribbed panel steel
  • Medium-duty
  • 2" nominal 24-gauge steel
  • R-Value 7 (with optional insulation)
  • U-Value 0.143 (with optional insulation)

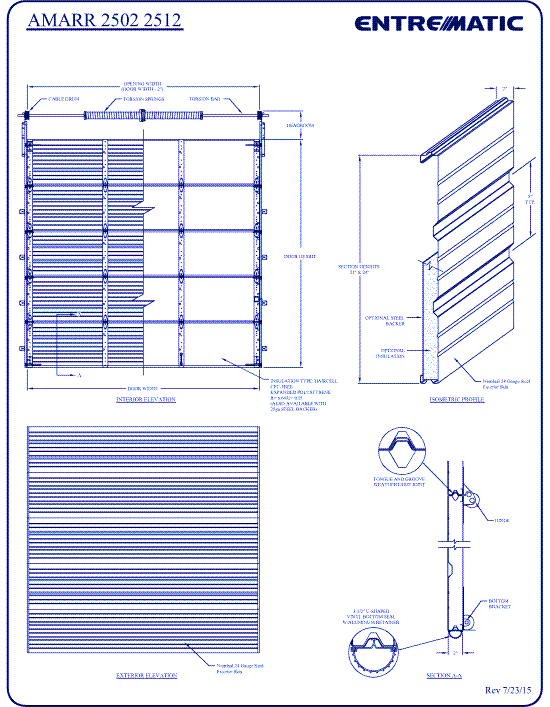

CAD Drawings BIM Models Amarr Amarr 2502 Series

Listing Back To Top

Design Visualizer

Design Visualizer

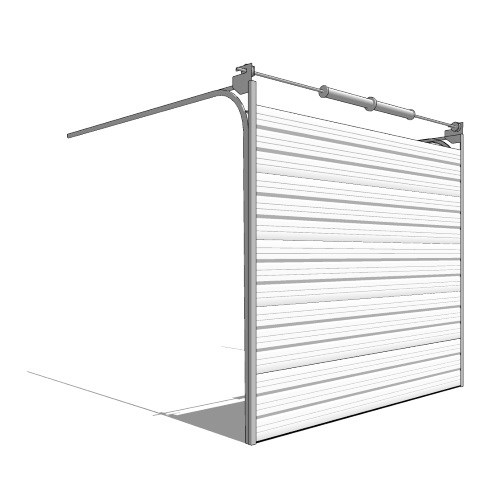

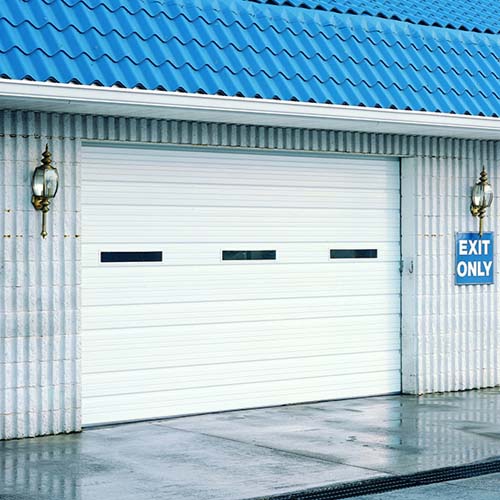

Amarr 2502 Series: Medium-Duty Ribbed Panel Steel
Amarr 2502 Series: Medium-Duty Ribbed Panel Steel
