Tubelite Inc.

INT45 Interior Flush Glaze Framing

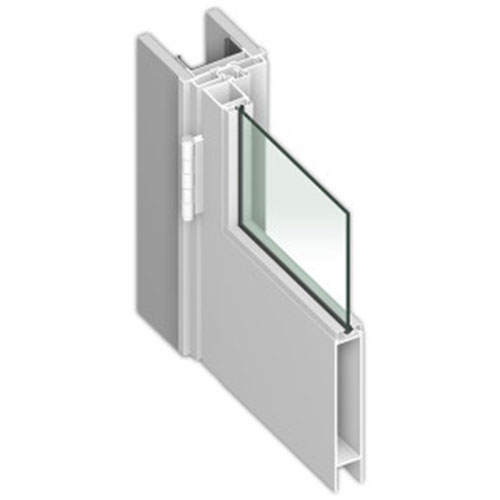

INT45 Interior Flush Glaze Framing allows easy incorporation of standard aluminum storefront with metal stud and drywall systems commonly used in commercial office and retail space. Multiple adapters are available in configurations for installing the aluminum frames either before or after the drywall, completely covering the end of the stud wall. Installation is simple and fast with perimeter trim members that are pre applied on one side of the frame opening.

Standard swing doors and frames provide a complete system and come in 11 anodized and 19 standard painted finishes. Gaskets for glass thicknesses from 1/4'' to 1/2'' are available in Black or Grey as desired. There is also an option for use of recycled aluminum on the storefront members [excludes doors and door frames].

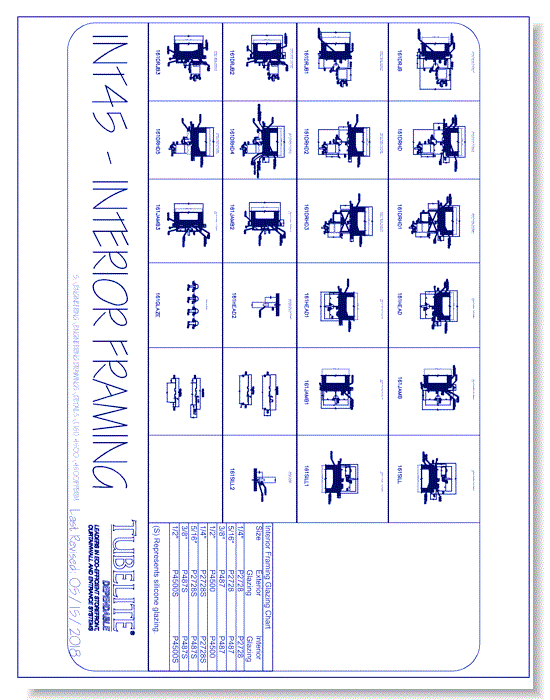

CAD Drawings BIM Models Tubelite Inc. INT45 Interior Flush Glaze Framing

Listing Back To Top

Design Visualizer

Design Visualizer

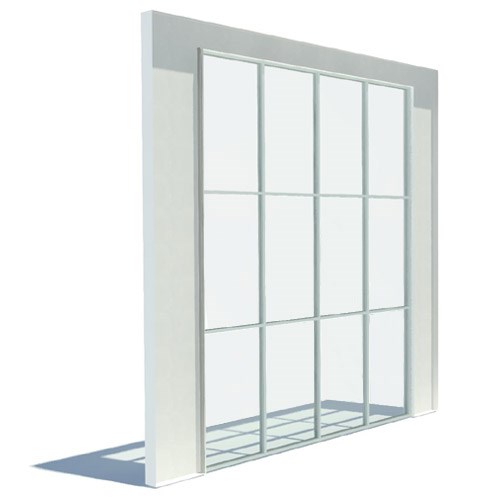

INT45 Interior Flush Glaze Framing
