Yale ( A670 )

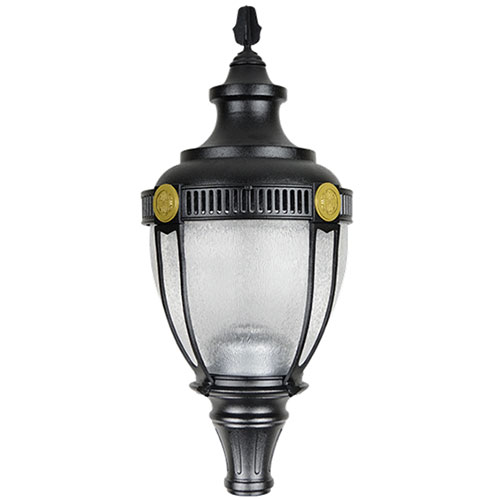

The A670TSRLED Yale luminaire is a stylized victorian acorn fixture. It has a decorative cast aluminum fitter, a polycarbonate or acrylic clear textured acorn and a cast aluminum cage and roof. It is appointed with a cast aluminum decorative 4-vane finial. The luminaire has LED light sources and roof mounted, down lighting optics. It measures 18" diameter and 38-5/8" overall height. The luminaire is DLC listed, and ETL listed in the USA and Canada.

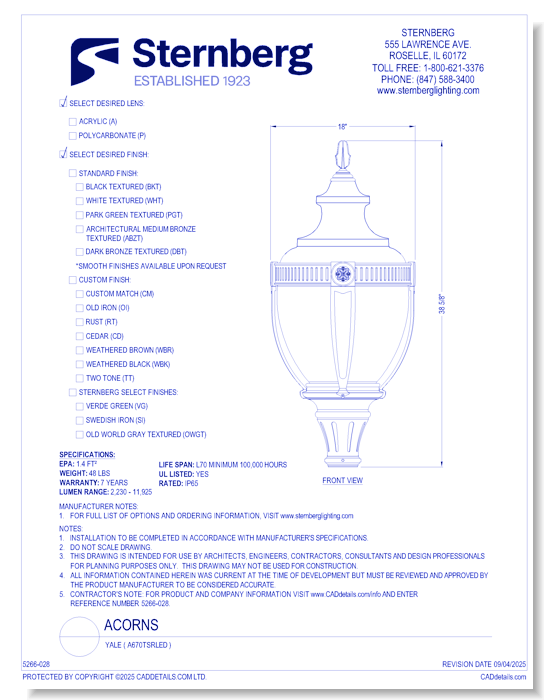

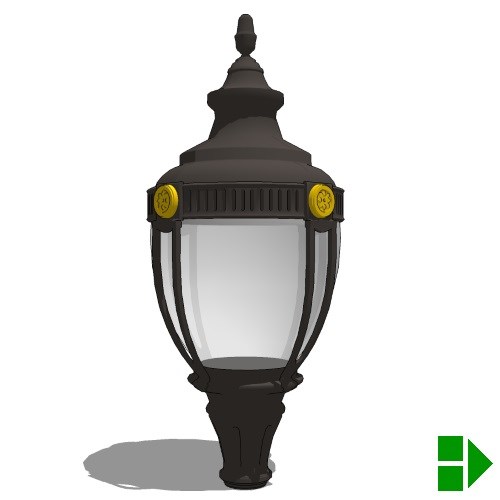

CAD Drawings BIM Models Sternberg Lighting Yale ( A670 )
