Draincore2

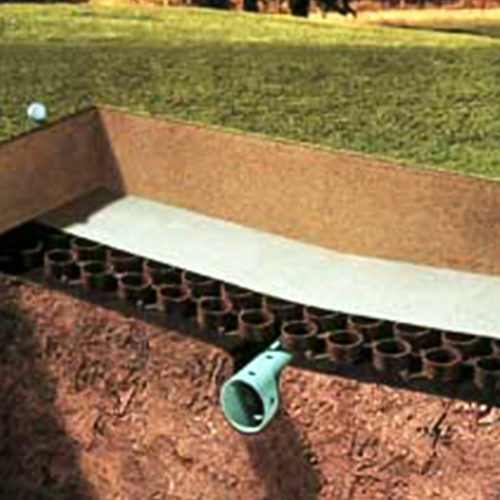

Draincore2 is a high volume drainage layer capable of withstanding heavy loads in direct contact. This drainage core is wrapped in a geotextile fabric, which allows water to enter from any direction, with the rings placed vertically or horizontally. Water can flow between rings in either vertical or lateral directions simultaneously. Flow volumes can be matched with multiple layer configurations. Draincore2 can distribute water at 58 gallons per minute per foot width, twice the conveyance rate of a pipe and gravel system.
CAD Drawings Invisible Structures, Inc. Draincore2

All Available 2D CAD Files

All Available Specifications
