Cedar Trellis


CAD Drawings BIM Models Hauser Industries Inc. Cedar Trellis

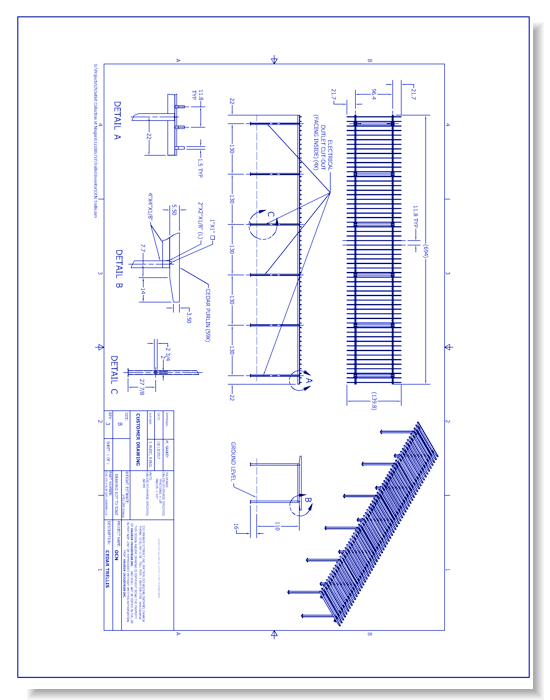

Our 'Cedar Trellis' has been professionally engineered, and features a heavy-duty aluminum construction; 4" x 4" posts posts with built-in surface mount plates, and 1.5" x 5.5" sealed Cedar purlins. The Trellis incorporates our proprietary Konnectr System to ensure that each design is as fluid as possible, while still meeting the requisite load and wind analysis. The Hauser Konnectr System, consisting of custom engineered Konnectr Blocks, ensures that each beam and column connection is seamless, strong and virtually undetectable. Stainless steel, countersunk hardware placed in key locations provide the finishing element to secure the connection. The frame has been designed to accept a variety of lighting and heat options. Custom sizes are available.
