Campfire Rings: Wheelchair Accessible Firering ( FS-30 )

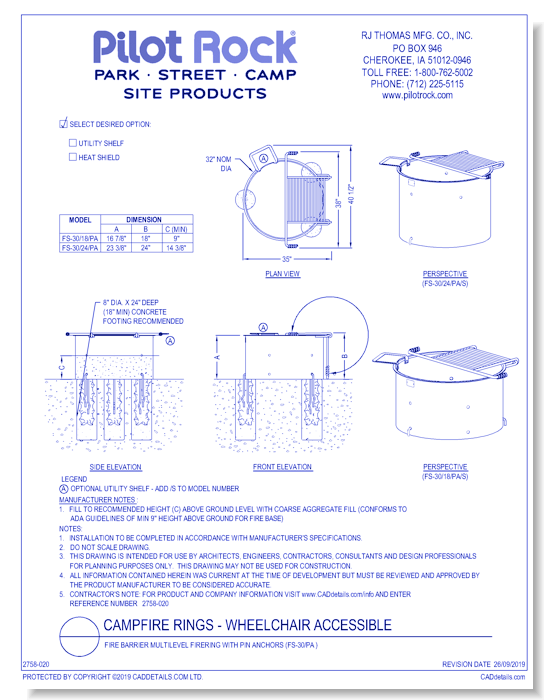

CAD Drawings RJ Thomas Mfg. Co. / Pilot Rock Campfire Rings: Wheelchair Accessible Firering ( FS-30 )

Model FS-30/18/PA accessible campfire ring includes the simple single level cooking grate.  The 290 sq. inch grate can be laid over the fire, or tipped over and out of the fire ring, but it remains permanently hinged to the ring.

This taller fire ring, available in 18" or 24" (nom.) tall designs, brings the cooking surface to a convenient height for use from a wheelchair.

The fire ring is rolled using 3/16" thick steel, with 1" formed flange for strength and safety.  The welded cooking grate uses a 3/4" dia. handle bar, 5/8" dia. perimeter bar and 1/2" dia. grate bars, and includes handle grips of 1/8" x 1/2" coiled steel.  All grate bars are welded on both sides.  Finished with high temp non-toxic black enamel paint.  Pin anchors provide a fixed location and must be set in concrete.

The fire ring is filled with aggregate (not included) to about 9" above the ground to provide the elevated fire surface needed for wheelchair access.  This fill also insulates the ground to reduce the chance of root fires in heavily wooded areas.  Drain/draft holes are provided around the perimeter of the campfire ring.

OPTIONAL: Bolt on utility shelf Model S5

OPTIONAL: Heat shield (add /H to end of model number)
