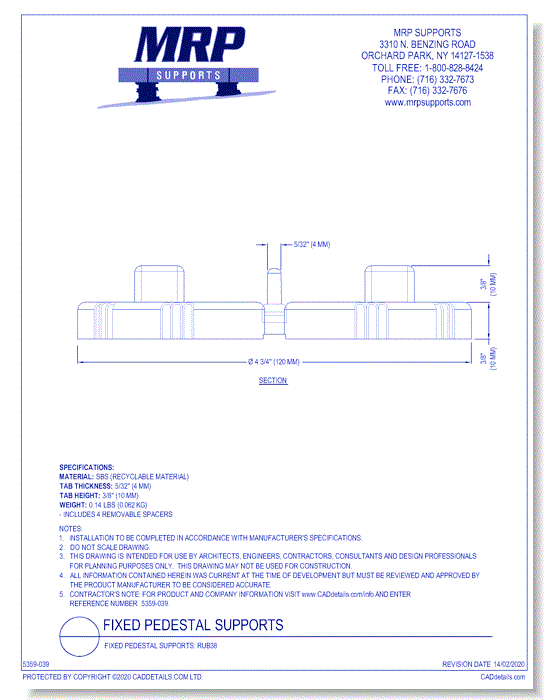

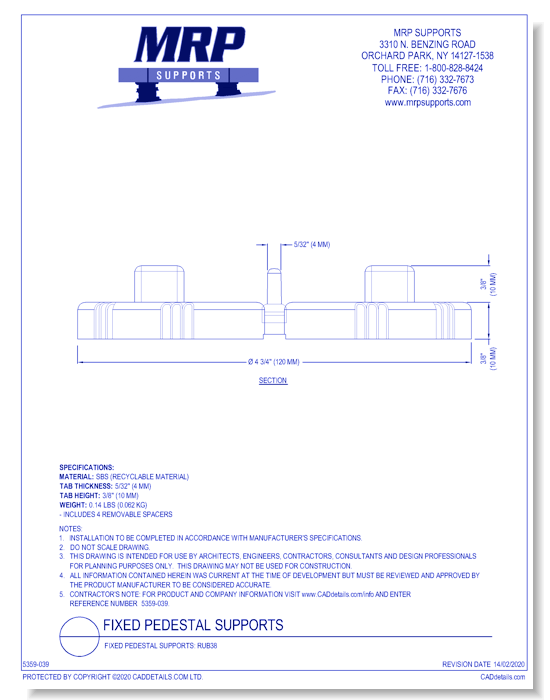

Fixed Pedestal Supports: RUB38

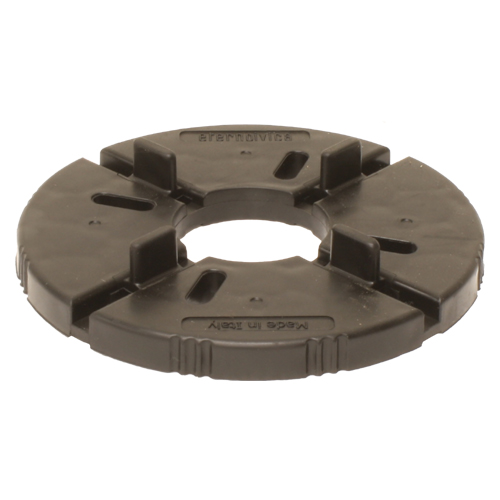

The RUB-38 is a 3/8" tall support made of SBS recyclable rubber. The material used has a particularly high resistance to temperature changes, acid solutions and atmospheric agents that make it mostly suitable for outdoor use. It has a high sound absorbing property and its composition is formulated specifically to match the high performance of the NM and SE pedestal lines.
INFORMATION
- Height: 3/8"
- Base Diameter: 4-3/4"
- Tab Height: 3/8"
- Tab Width: 5/32"
- Packaging: 150/Carton
