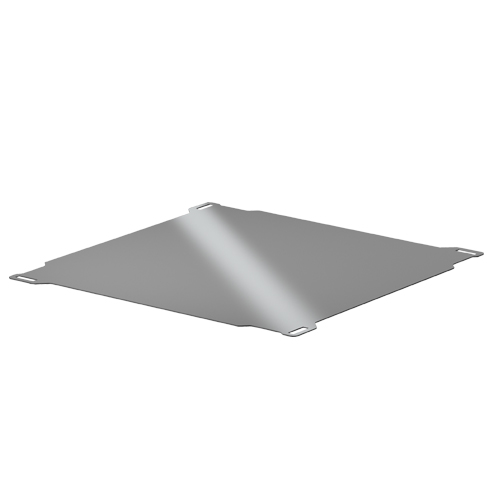

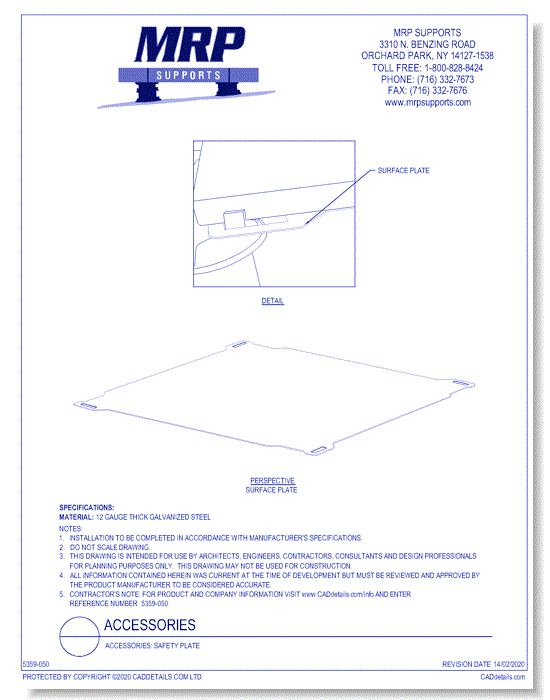

The safety plate by MRP Supports is made of 12 gauge galvanized steel, suitably shaped in order to support the flooring elements in the event of accidental breakage, eliminating the risk of accidents as the safety plate will support both the flooring element and the possible person. In the event of accidental breaking of the flooring element, the safety plate will “hook” the spacing fins of the heads of the supports so as to increase their resistance. Easy to apply, the safety plate is placed above the heads of the adjustable supports, fitting perfectly into the spacer fins; its particular shape allows the rainwater to drain through the “joints” between the flooring elements.
NOTE: THE SAFETY PLATE IS NOT INTENDED TO PREVENT WIND UPLIFT
Allows for inspection of the underlying laying surface
