Panel 15® 1PC Molding System
These budget-friendly systems offer quick lead time, on-site fabrication, as well as a number of different core options to suit your specific application.
Panel Thickness

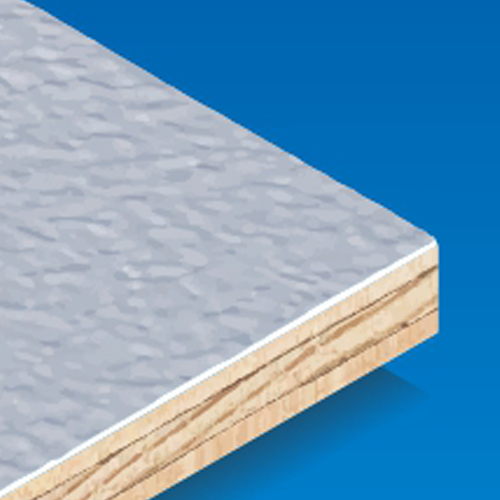

A durable, 5/16" thick exterior grade plywood provides an excellent substrate for the panel.
System Depth
The system measures 1/2" from the face of the substrate to the face of the moldings.
Panel Weight
This panel has a nominal weight of approximately 1.01 lbs per square foot.
Barrier Wall
This system is designed to be completely sealed to keep all moisture away from the structure.
Impact Resistant
Along with a textured skin, the wood core provides excellent protection to dents and dings.
Flat Moldings
One-piece, low-profile aluminum moldings capture the panel edge and fit close to the face.
1.

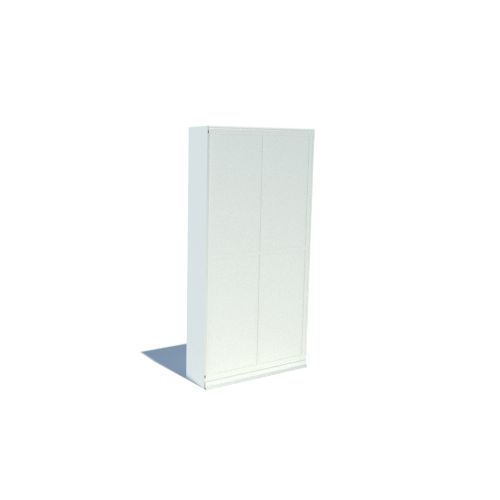

Panel 15® 1PC Molding System
2.
Panel 15® 1PC Molding System - Substrate Layout
3.

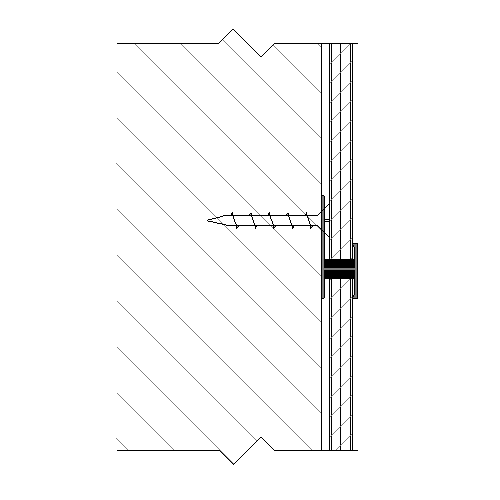

Panel 15® 1PC Molding System - Horizontal / Vertical
4.

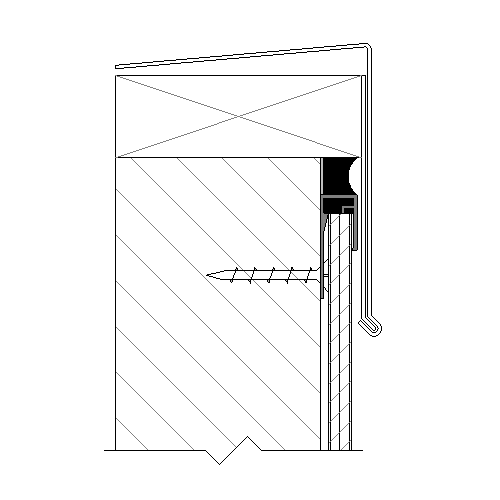

Panel 15® 1PC Molding System - Perimeter J - Parapet
5.

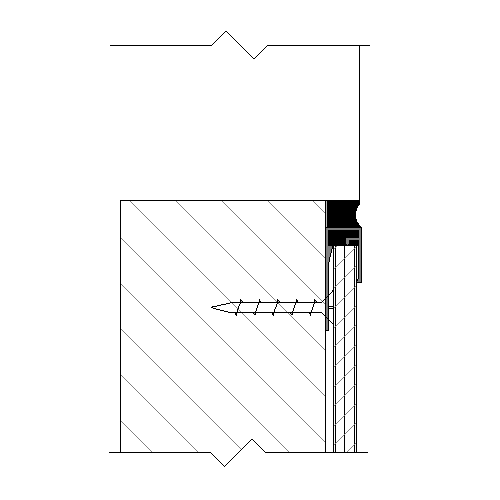

Panel 15® 1PC Molding System - Perimeter J - Foundation
6.

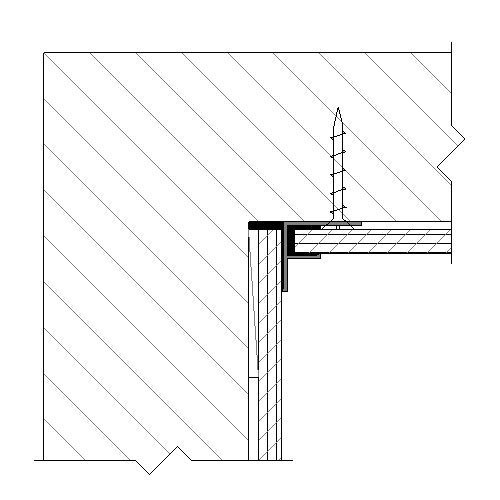

Panel 15® 1PC Molding System - Inside Corner
7.

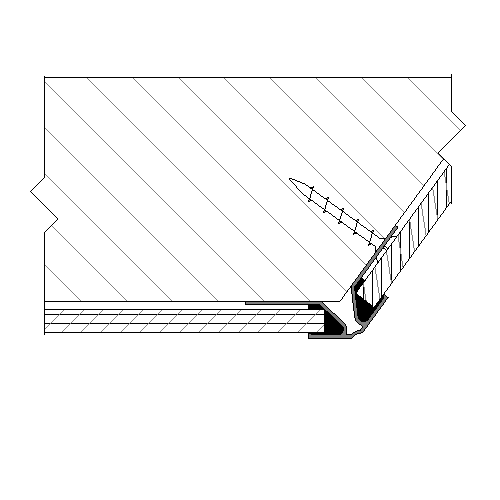

Panel 15® 1PC Molding System - Outside Corner
8.

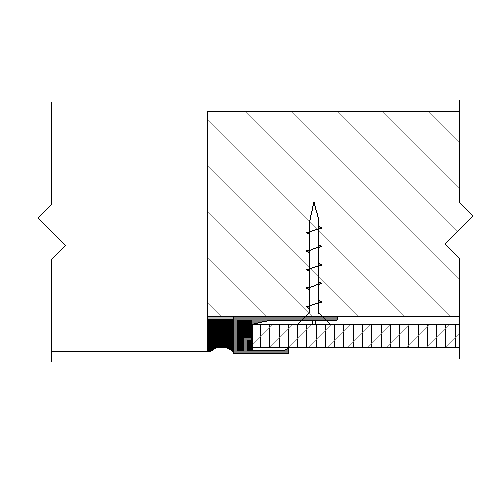

Panel 15® 1PC Molding System - Perimeter J - Window Head
9.
Panel 15® 1PC Molding System - Perimeter J - Window Sill
10.
Panel 15® 1PC Molding System - Perimeter J - Jamb
