Panel 20® 2PC Molding System
These budget-friendly systems offer quick lead time, on-site fabrication, as well as a number of different core options to suit your specific application.
Panel Thickness

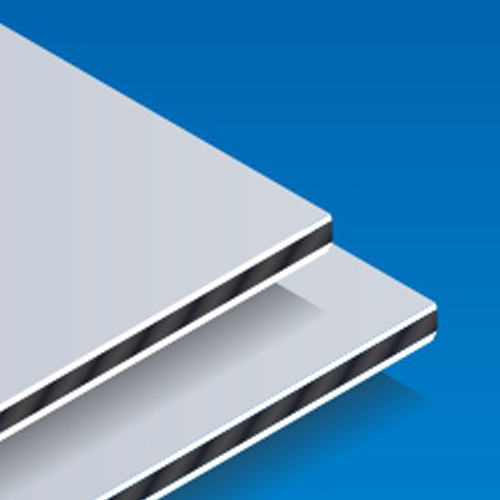

A durable, .075" thermoset phenolic resin core provides an ultra-smooth substrate.
System Depth
The system measures 7/16" from the face of the substrate to the face of the moldings.
Panel Weight
This panel has a nominal weight of approximately 1.28 lbs per square foot.
Barrier Wall
This system is designed to be completely sealed to keep all moisture away from the structure.
Impact Resistant
The dense, hard phenolic core offers extra protection against dents and dings.
Raised Moldings

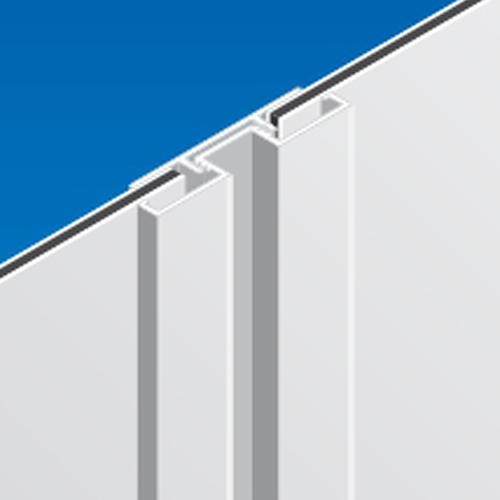

Two-piece, raised-profile aluminum moldings create an accent shadow line around the perimeter.
1.
Panel 20® 2PC Molding System
2.

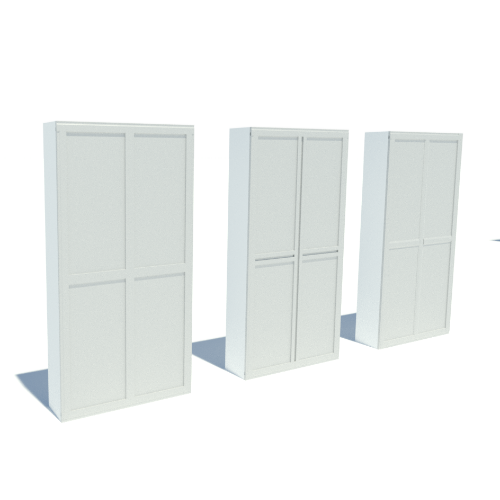

Panel 20® 2PC Molding System - Substrate Layout
3.

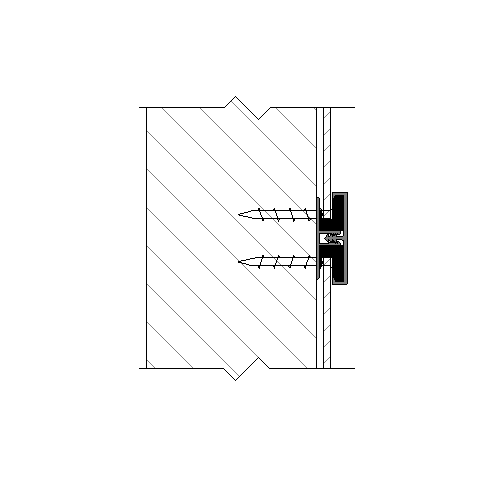

Panel 20® 2PC Molding System - Horizontal / Vertical - Option 1
4.

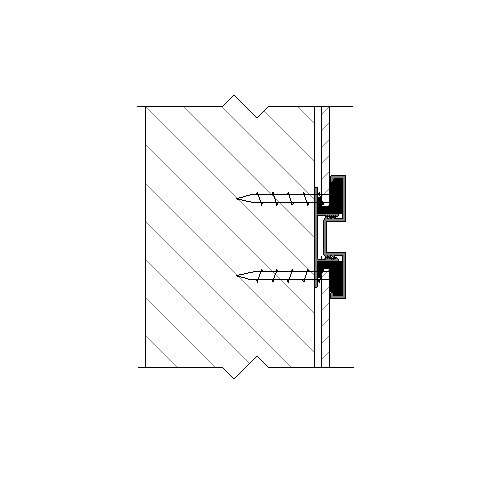

Panel 20® 2PC Molding System - Horizontal / Vertical (Reveal) - Option 2
5.

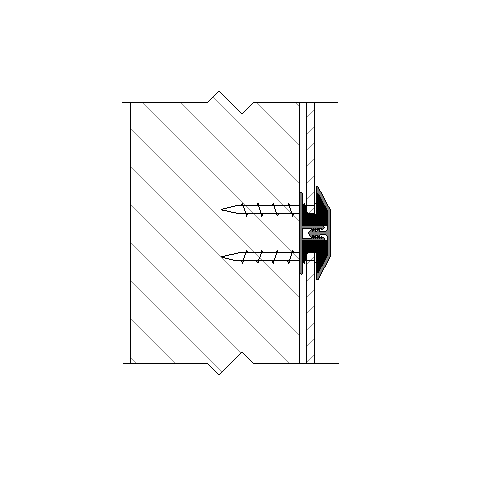

Panel 20® 2PC Molding System - Horizontal / Vertical (Chamfer) - Option 3
6.

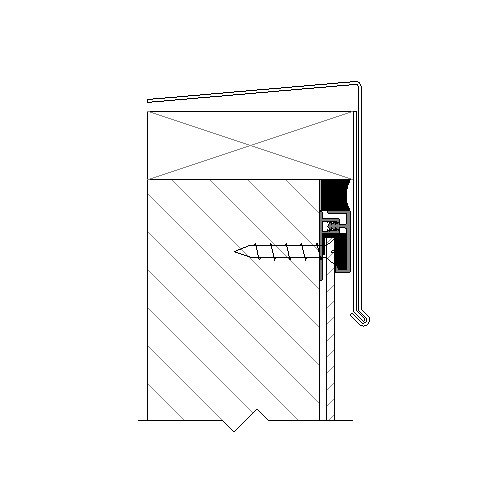

Panel 20® 2PC Molding System - Perimeter J - Parapet
7.

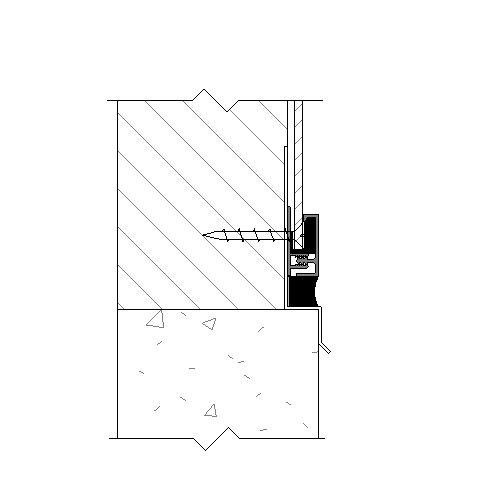

Panel 20® 2PC Molding System - Perimeter J - Foundation - Option 1
8.

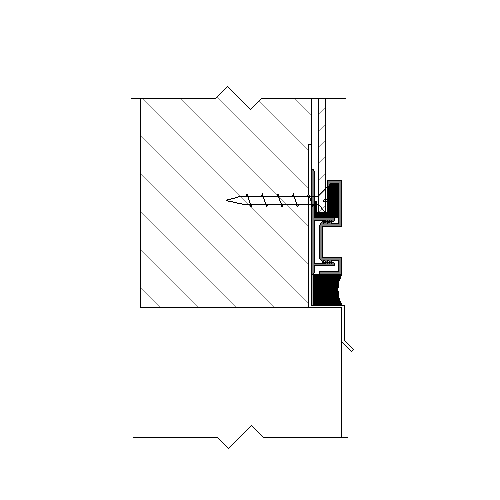

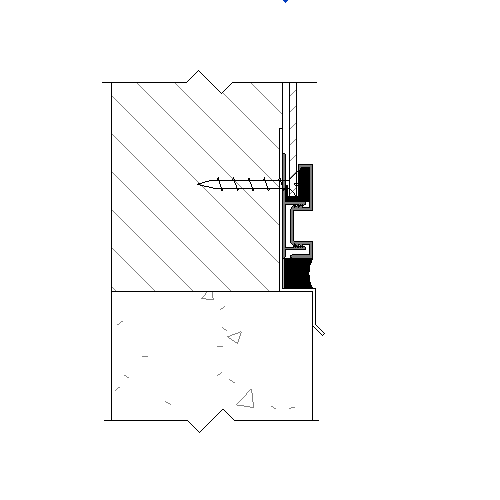

Panel 20® 2PC Molding System - Perimeter J - Foundation (Reveal) - Option 2
9.

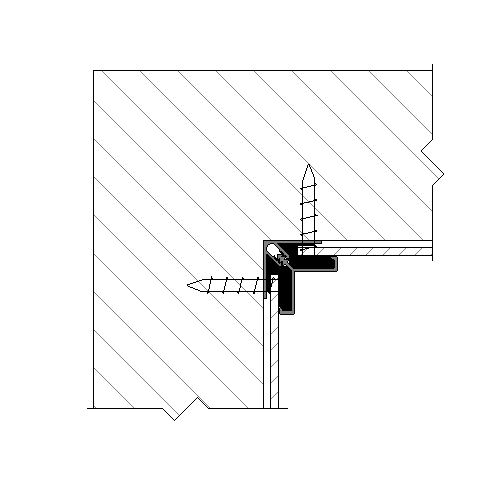

Panel 20® 2PC Molding System - Inside Corner
10.

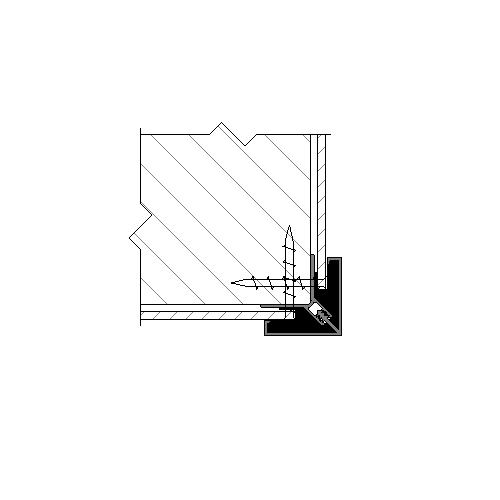

Panel 20® 2PC Molding System - Outside Corner
11.

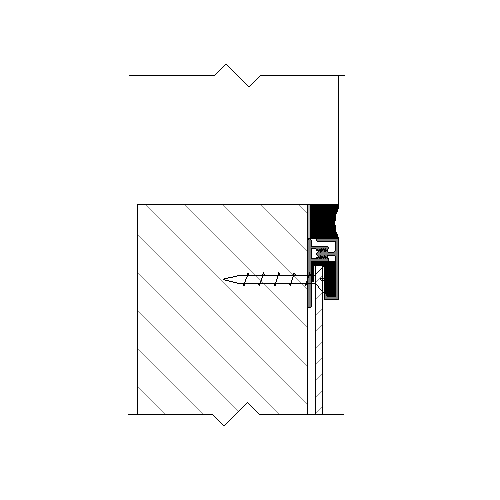

Panel 20® 2PC Molding System - Perimeter J - Window Head - Option 1
12.

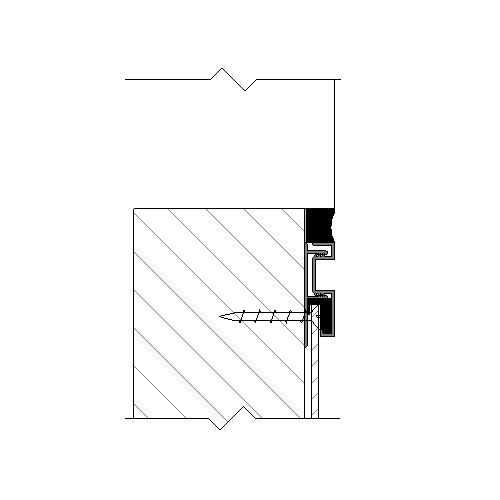

Panel 20® 2PC Molding System - Perimeter J (Reveal) - Window Head - Option 2
13.

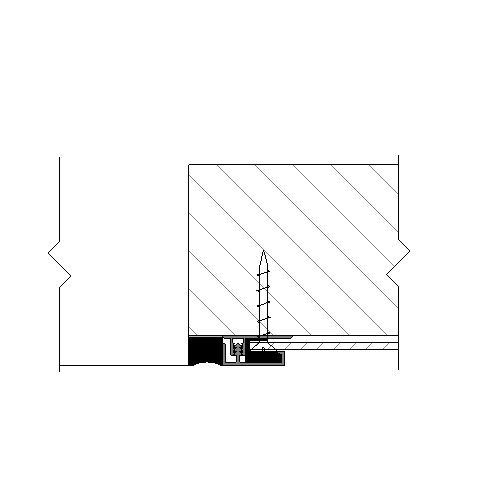

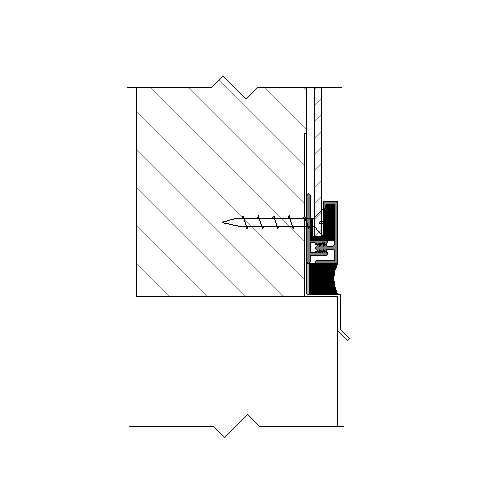

Panel 20® 2PC Molding System - Perimeter J - Window Sill - Option 1
14.
Panel 20® 2PC Molding System - Perimeter J (Reveal) - Window Sill - Option 2
15.

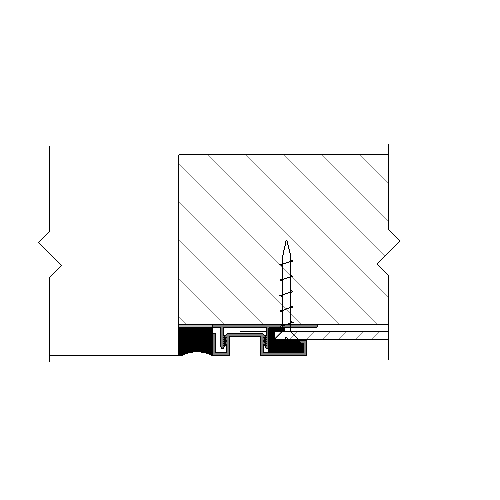

Panel 20® 2PC Molding System - Perimeter J - Jamb - Option 1
16.
Panel 20® 2PC Molding System - Perimeter J (Reveal) - Jamb - Option 2
