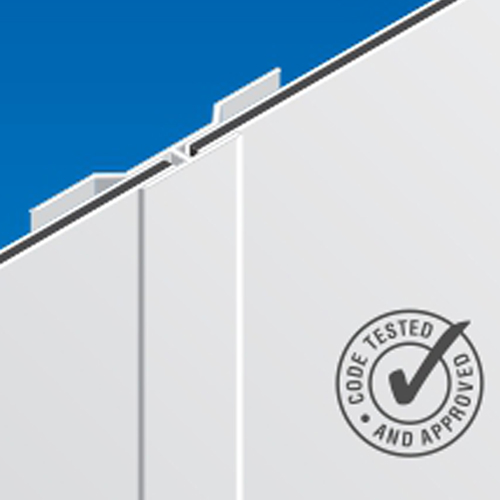

Envelope 2000® RV
All the benefits of a tested ACM / MCM in a system that can be fabricated on-site, along with a quick lead time makes these products the optimization of value.
Panel Thickness
A durable, .105" thermoset phenolic resin core provides an ultra-smooth substrate.
System Depth
The system measures 7/16" from the face of the substrate to the face of the moldings.
Panel Weight
This panel has a nominal weight of approximately 1.25 lbs per square foot.
Barrier Wall
This system is designed to be completely sealed to keep all moisture away from the structure.
Fire Resistant
The standard phenolic core is fire resistant and meets (or exceeds) code requirements.
Code Tested
Designed for performance, tested by ASTM 283, 330 and 331 as well as ICC and NFPA 285.
1.
Envelope 2000® RV System
2.
Envelope 2000® RV - Substrate Layout
3.

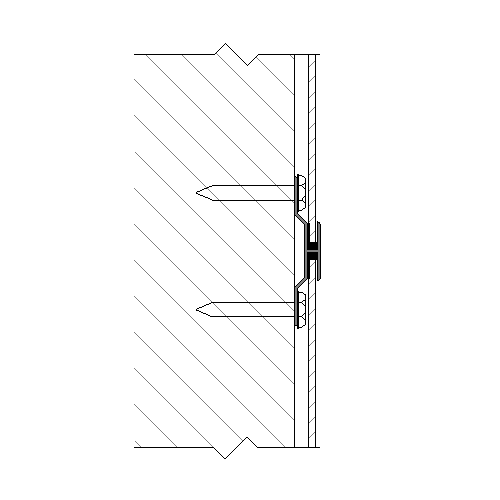

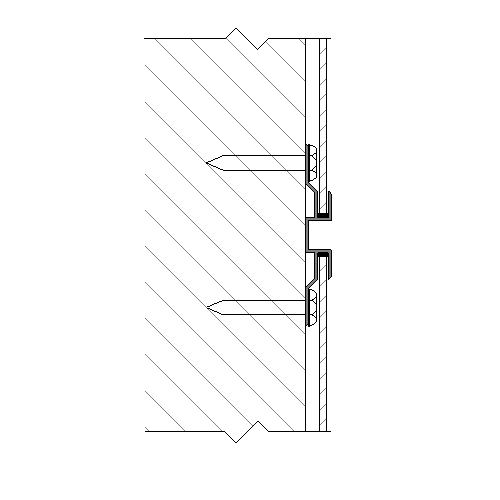

Envelope 2000® RV - Horizontal / Vertical - Option 1
4.

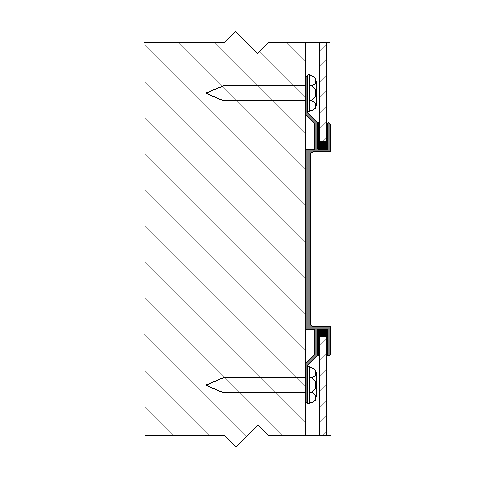

Envelope 2000® RV - Horizontal / Vertical (Reveal) - Option 2
5.
Envelope 2000® RV - Horizontal / Vertical (Reveal) - Option 3
6.

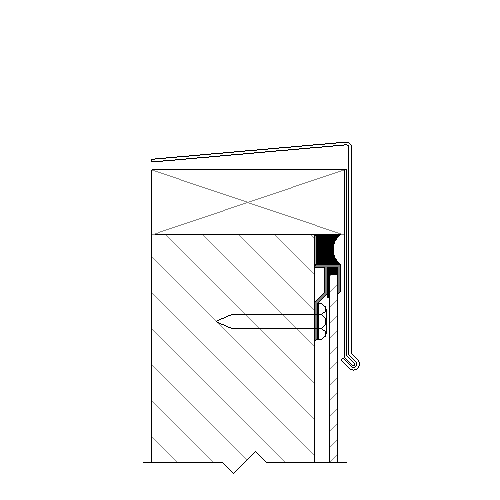

Envelope 2000® RV - Perimeter J - Parapet
7.

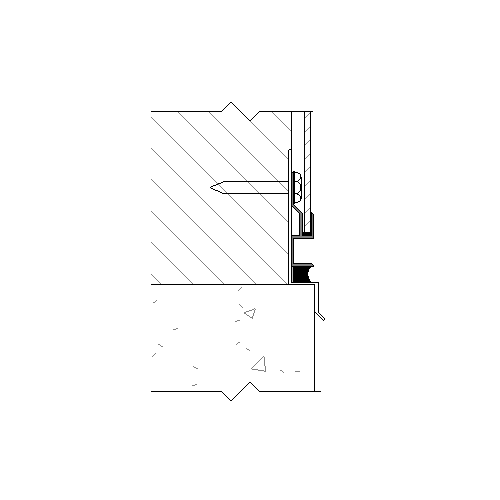

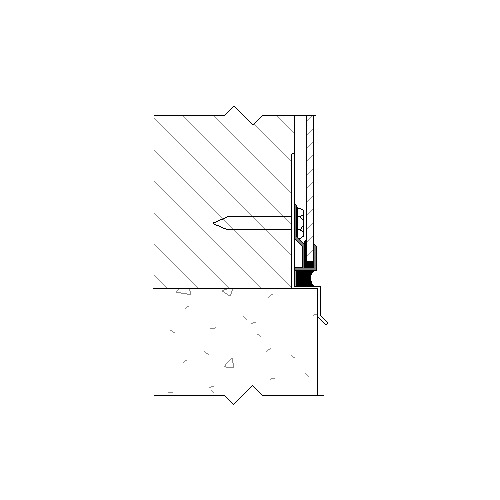

Envelope 2000® RV - Perimeter J - Foundation - Option 1
8.

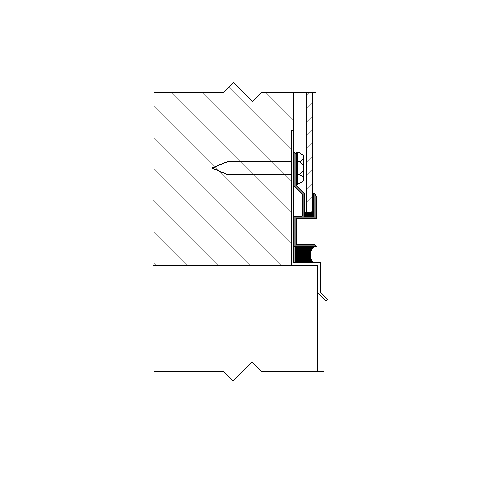

Envelope 2000® RV - Perimeter J - Foundation (Reveal) - Option 2
9.

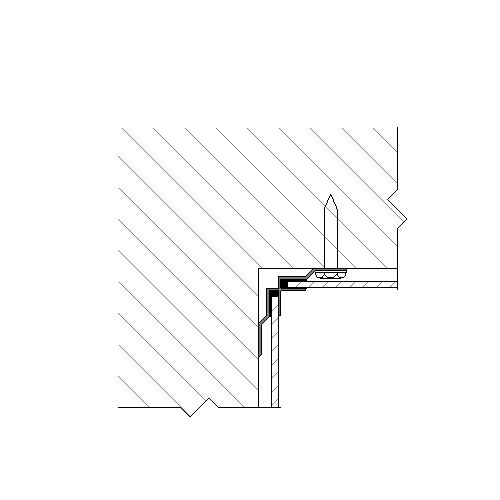

Envelope 2000® RV - Inside Corner
10.

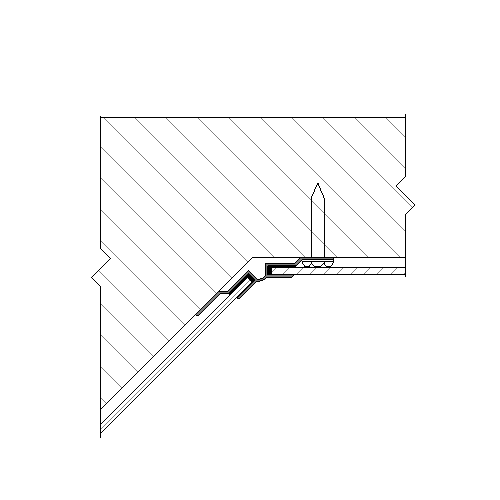

Envelope 2000® RV - Inside Corner (Adjustable)
11.

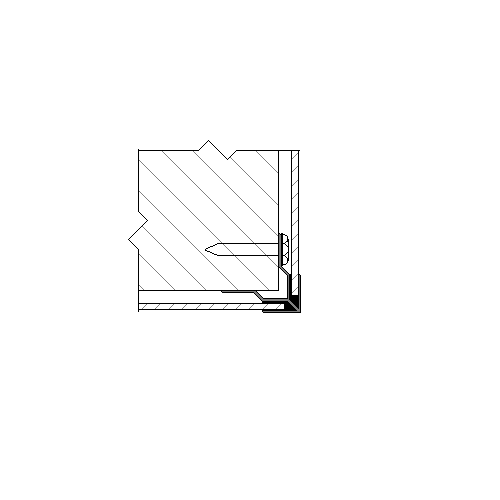

Envelope 2000® RV - Outside Corner
12.

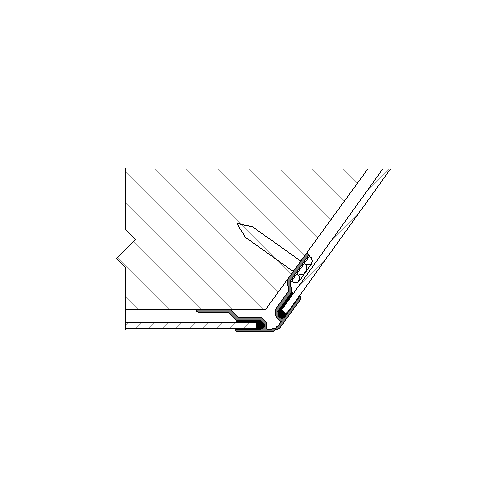

Envelope 2000® RV - Outside Corner (Adjustable)
13.

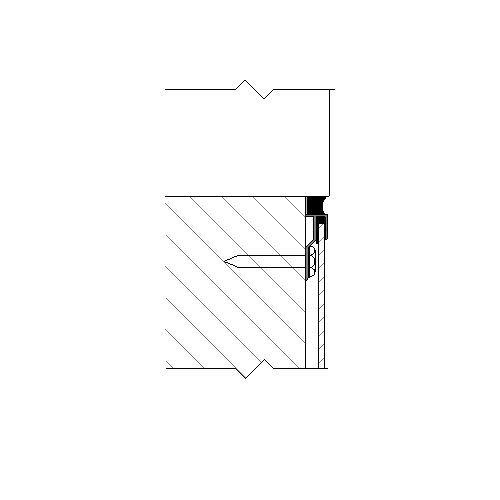

Envelope 2000® RV - Perimeter J - Window Head - Option 1
14.
Envelope 2000® RV - Perimeter J (Reveal) - Window Head - Option 2
15.

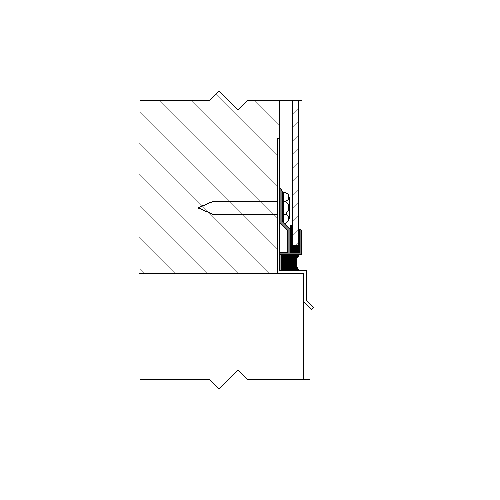

Envelope 2000® RV - Perimeter J - Window Sill - Option 1
16.
Envelope 2000® RV - Perimeter J (Reveal) - Window Sill - Option 2
17.

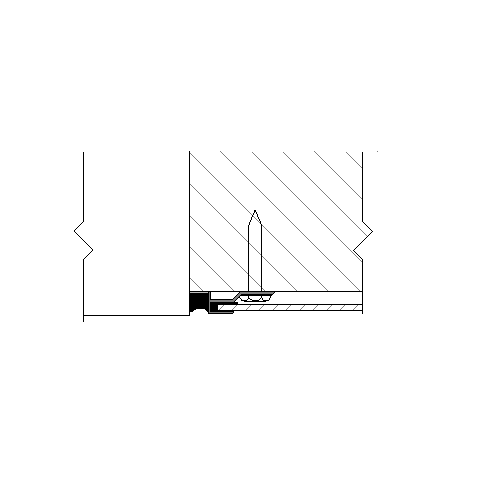

Envelope 2000® RV - Perimeter J - Jamb - Option 1
18.

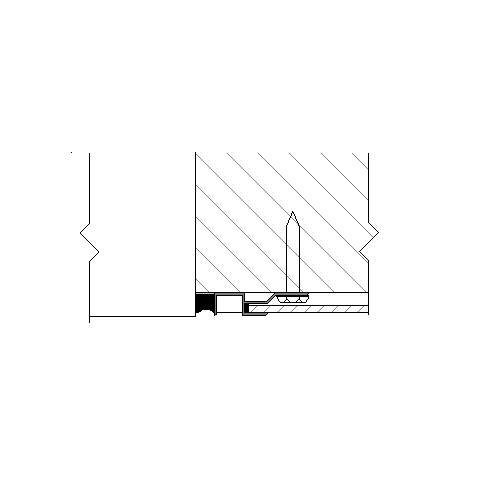

Envelope 2000® RV - Perimeter J (Reveal) - Jamb - Option 2
