GlazeGuard® 1000 WR+

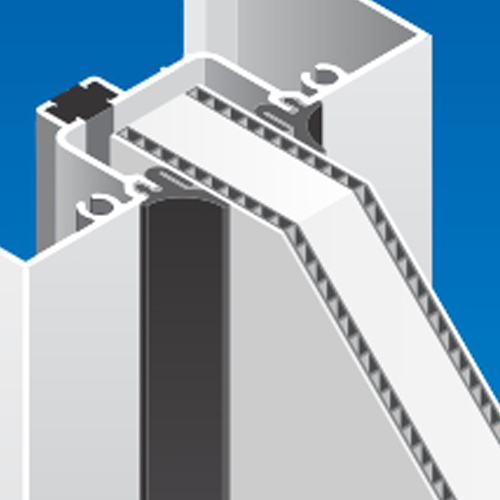

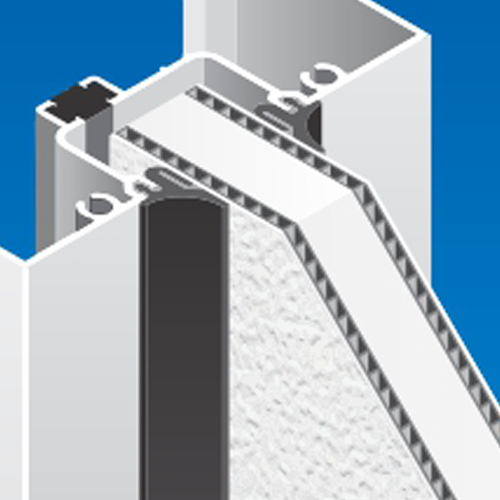

As a complement or replacement for glass, infill panels are the perfect solution for a number of different storefront or window applications.
Panel Thickness

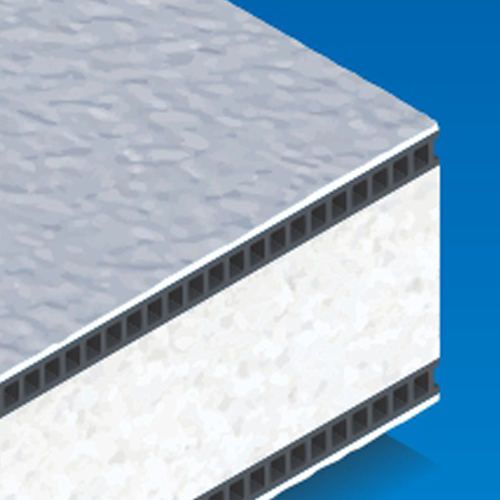

Polypropylene stabilizers and EPS or ISO foam combine to make this panel a nominal 1".
R-Value
As an alternative to glass, this panel offers an R-Value of 4.19 (EPS) and 6.13 (ISO).
Panel Weight
This panel has a nominal weight of approximately 0.80 to 1.23 lbs per square foot.
Cut-To-Size
These panels can be easily cut to the correct dimension on site using standard tools.
Water Resistant
The plastic stabilizers allows these panels to offer extra protection from moisture.
Quick Lead Time
Available nationwide, these panels can be found locally or shipped within 2 weeks.
