SiteScapes Inc.

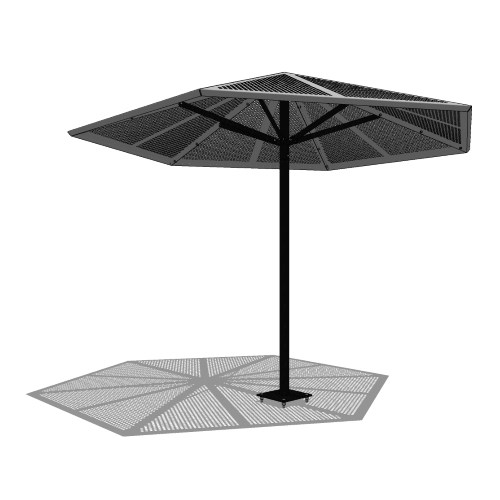

Aluminum Panel Umbrella

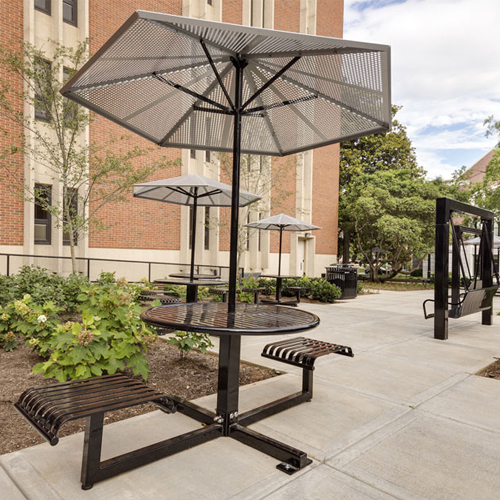

The SiteScapes aluminum umbrella is a permanently mounted umbrella that casts a large shade canopy while providing superior longevity and structural integrity. The light weight perforated shade panels allow air flow to reduce wind leverage while being anchored by solid steel rib components.

The center post is a robust 1 1/2" schedule 40 steel pipe that can withstand the harshest of environments. The six individual powder coated panels allow for a variety of long lasting non fading color combinations or school color coordination.
CAD Drawings BIM Models SiteScapes Inc. Aluminum Panel Umbrella
CAD Drawings BIM Models SiteScapes Inc. Aluminum Panel Umbrella CAD Drawings BIM Models SiteScapes Inc. Aluminum Panel Umbrella

Listing Back To Top

Design Visualizer

Design Visualizer

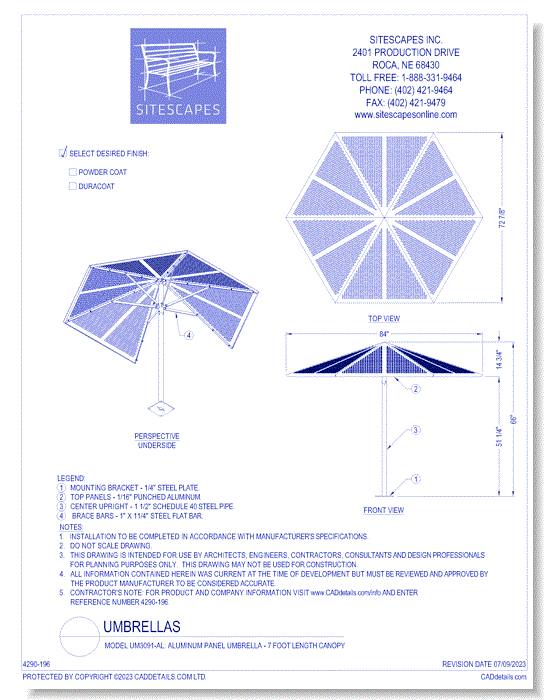

Model UM3091-AL: Aluminum Panel Umbrella - 7 Foot Length Canopy
Model UM3091-AL: Aluminum Panel Umbrella - 7 Foot Length Canopy
