3.25" ISO Clip

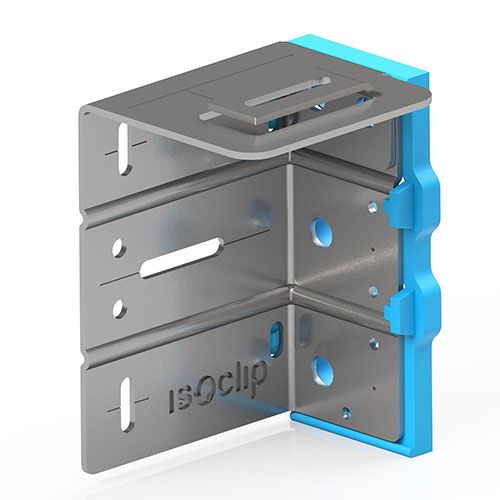

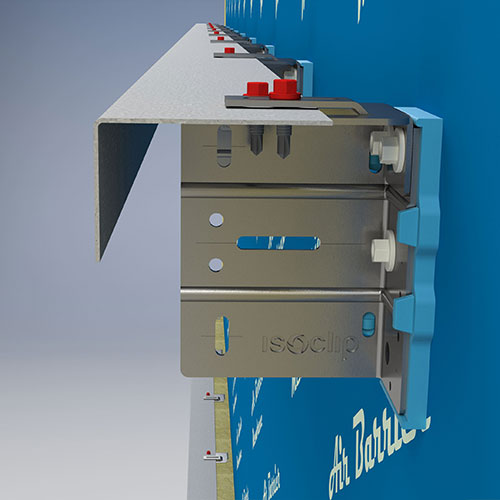

The ISO Clip creates a thermal break separating the interior of the building from the exterior. Its unique design features reduce thermal transfer through the building envelope. The clip accommodates a variety of insulation thickness or wall depths, eliminating the need for shims or multiple clip sizes it is engineered to perform on all substrates including concrete, concrete block, steel studs or wood.
1.

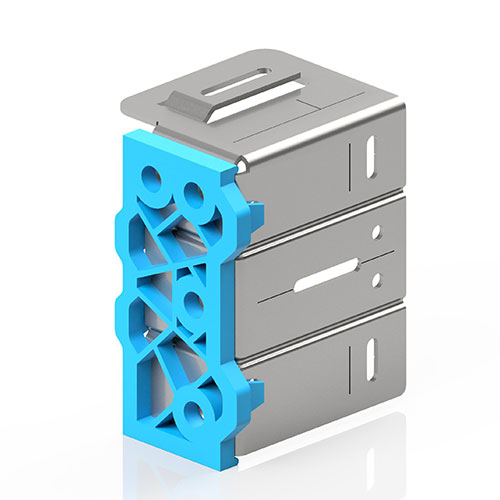

3.25" ISO Clip: Isometric View
2.
3.25" ISO Clip: Master CAD File
3.
- Front View Substrate Fastening Patterns
4.
- Top & Side View Subgirt Fastening Guidelines
5.
- Horizontal Subgirt Section Detail at Horizontal Joint
6.
- Horizontal Subgirt Plan Detail at Vertical Joint
7.
- Vertical Subgirt Section Detail at Horizontal Joint
