Marshalls

RhinoGuard® 25-40 Shallow Mount


  • Overall Foundation depth - 8 inches
  • P2 at 90° impact
  • 6-inch frame + 2-inch cover

Able to withstand the force of a 2.5-tonne vehicle driving at 40mph, the Rhinoguard® 25/40 protective bollard system is an excellent choice for protecting public spaces. The steel core is set into reinforced concrete foundations and 1000mm into the ground - providing the ultimate resistance to vehicular attack. The 25/40 model has been successfully crash-tested in accordance with the BSI PAS 68 standard, rendering test vehicles immobile on collision. The bollards are not only strong enough to withstand the force of a hostile vehicle but they are also an attractive and cost-effective solution, with a choice of sleeves available to cover the certified steel core. Sleeve options include brushed stainless steel, steel with a polyester powder coat finish or painted Ferrocast®. A range of standard RAL colours are available.

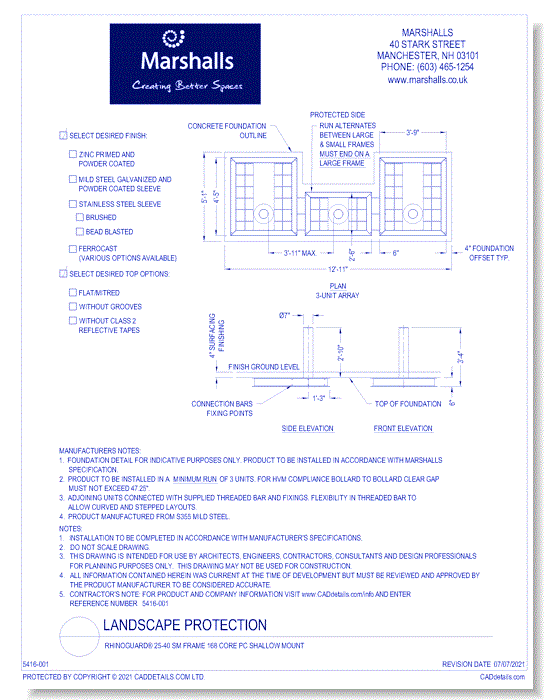

CAD Drawings BIM Models Marshalls RhinoGuard® 25-40 Shallow Mount
CAD Drawings BIM Models Marshalls RhinoGuard® 25-40 Shallow Mount CAD Drawings BIM Models Marshalls RhinoGuard® 25-40 Shallow Mount CAD Drawings BIM Models Marshalls RhinoGuard® 25-40 Shallow Mount

Listing Back To Top

Design Visualizer

Design Visualizer

RhinoGuard® 25-40 SM Frame 168 Core PC Shallow Mount

Downloads

Architectural Product Information

About Media

CAD Toolbar

CADdetails™
PDF DWF DWG Printable CAD VWX DXF

BIM & 3D Toolbar

Manufacturer 3D
Manufacturer Revit Family
