Marshalls

RhinoGuard® 75-40 Static Core


  • 16,500 lbs.
  • M40 (K8) P2

With RhinoGuard technology built into the core, the 75/40 Protective Bollard has been successfully crash tested in accordance with the BSI PAS 68 standard.

The bollard allows designers to create effective hostile vehicle mitigation measures within their schemes. It is suitable for high-risk applications and for sites with a sufficient stand-off distance between the bollard and the area it is protecting.

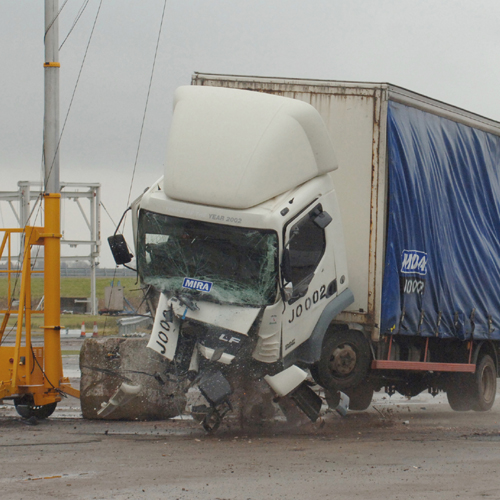

Capable of withstanding the impact of a fully-laden 7.5 tonne two axle rigid N2 lorry travelling at 40mph, it fully immobilizes the vehicle to eliminate the chance of a second attack.

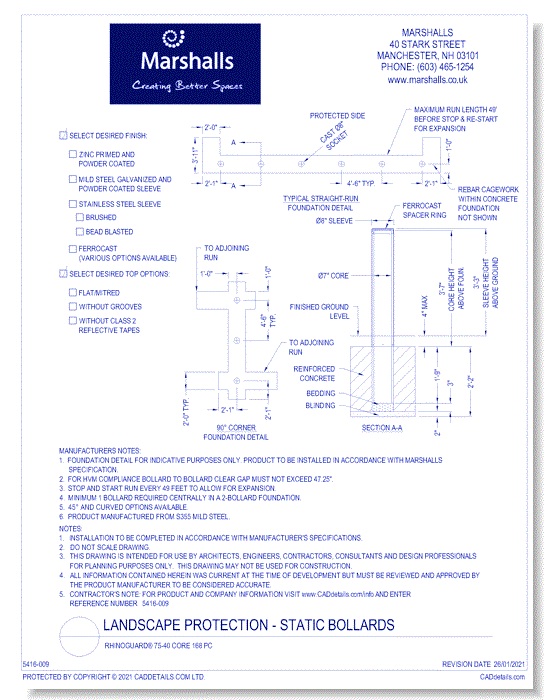

CAD Drawings BIM Models Marshalls RhinoGuard® 75-40 Static Core
CAD Drawings BIM Models Marshalls RhinoGuard® 75-40 Static Core CAD Drawings BIM Models Marshalls RhinoGuard® 75-40 Static Core CAD Drawings BIM Models Marshalls RhinoGuard® 75-40 Static Core
