Modern Shade LLC

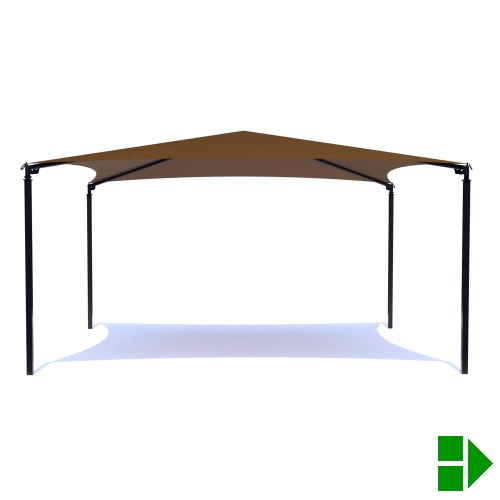

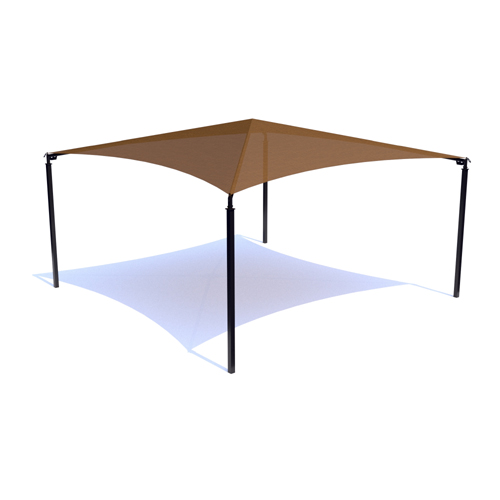

4 Post Pyramid

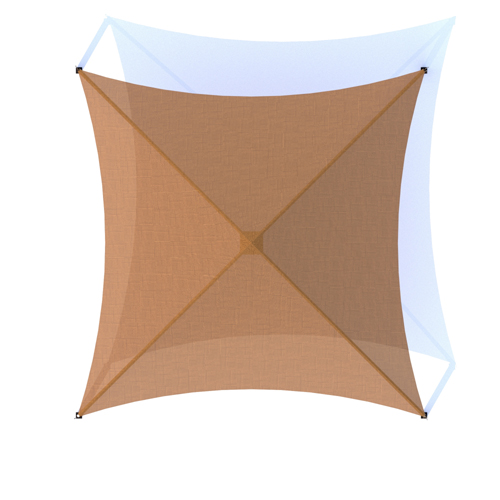

Similar to the 4 Post Hip, except instead of a “Hip”/ Ridge Beam the top of the canopy comes to a pyramid

  • This design can easily accommodate multiple structures joined together with shared columns for large areas
  • Standard sizes are 8’x8’ up to a 18’x18’ on 4 posts
  • Custom sizes are available in between

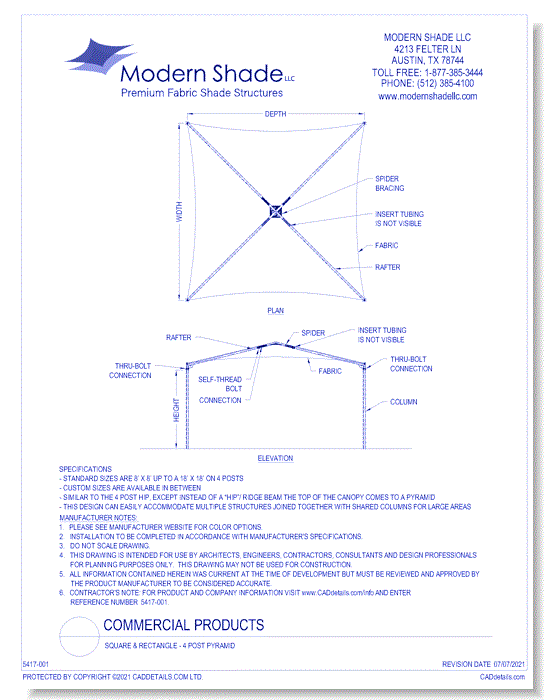

CAD Drawings BIM Models Modern Shade LLC 4 Post Pyramid
CAD Drawings BIM Models Modern Shade LLC 4 Post Pyramid CAD Drawings BIM Models Modern Shade LLC 4 Post Pyramid
