4 Point Sails

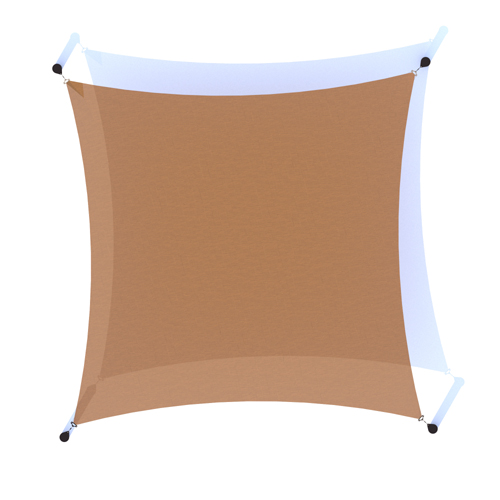

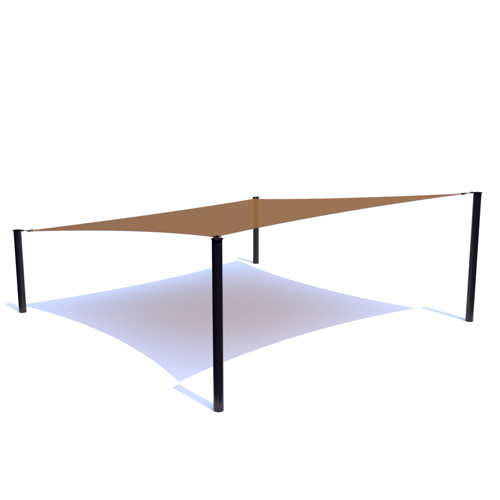

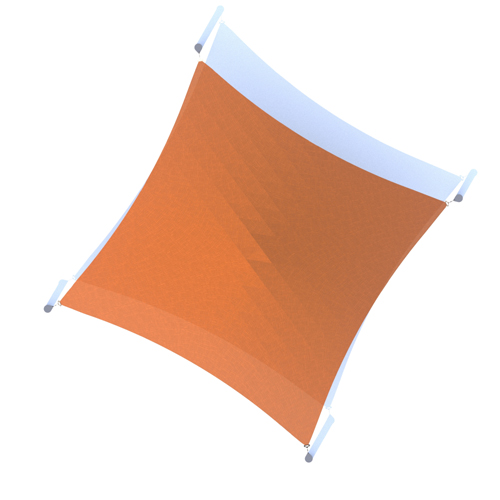

  • Square and Rectangle shaped Sails attaching to 4 posts with varying heights, typically provide more shade and better value than a single 3 Point Triangle Sail
  • Standard sizes are 15’x15’ with 8’ & 11’ posts up to 40’x40’ with 12’ & 18’ posts in 2 Main Configurations:

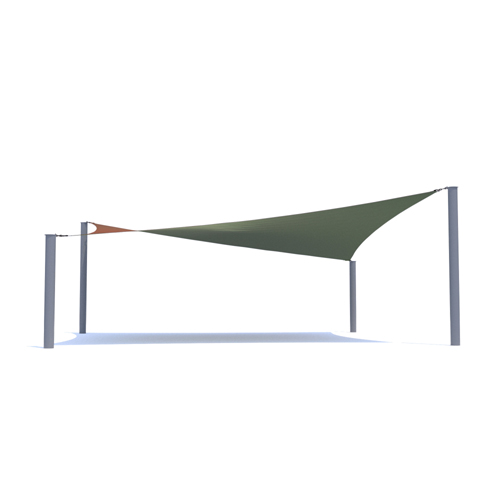

    Hypar: 2 diagonal high posts & 2 diagonal low posts creating a beautiful hyperbolic or “twisted” shape
    Lean-to: 2 high posts on the same side sloping down to 2 low posts on the opposite side
  • Custom sizes, shapes and heights are available for columns placed anywhere within 40’ of each other
CAD Drawings BIM Models Modern Shade LLC 4 Point Sails
CAD Drawings BIM Models Modern Shade LLC 4 Point Sails CAD Drawings BIM Models Modern Shade LLC 4 Point Sails CAD Drawings BIM Models Modern Shade LLC 4 Point Sails CAD Drawings BIM Models Modern Shade LLC 4 Point Sails

All Available 2D CAD Files

All Available BIM and 3D Files
