BP-7236E / BP-7241E Bi-Parting Automatic Sliding Transaction Window


This 72” wide bi-parting automatic contactless sliding transaction window has one of the largest service openings in the drive-thru arena. With a generous 29-1/2”(w) x 32”(h) opening, you can effectively operate with two workers in one window or pass large items such as dry cleaning, large pizza boxes, auto parts, etc. through the transaction window. All automatic windows come standard with the “hands-free” operation via a thru-beam sensor. However, we do offer these with the push button operation as well.

 BP-7236E Unit Size: 72"W x 36"H
 Service Opening Size: 29-1/2"W x 26-1/2"H

 BP-7241E Unit Size: 72"W x 41"H
 Service Opening Size: 29-1/2"W x 32"H

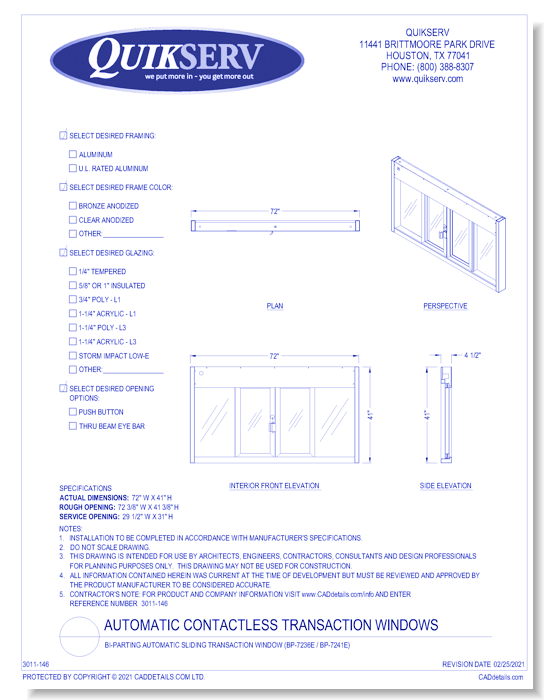

CAD Drawings BIM Models Quikserv BP-7236E / BP-7241E Bi-Parting Automatic Sliding Transaction Window
