Quikserv

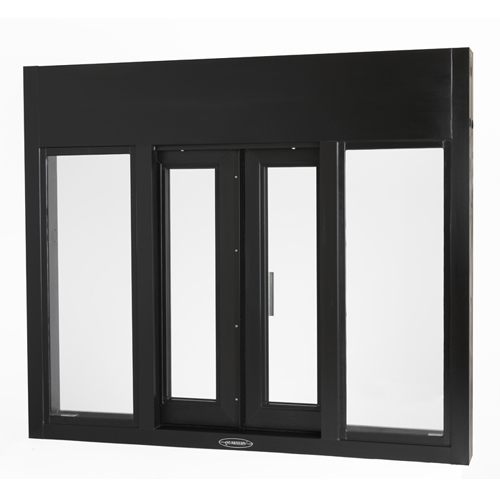

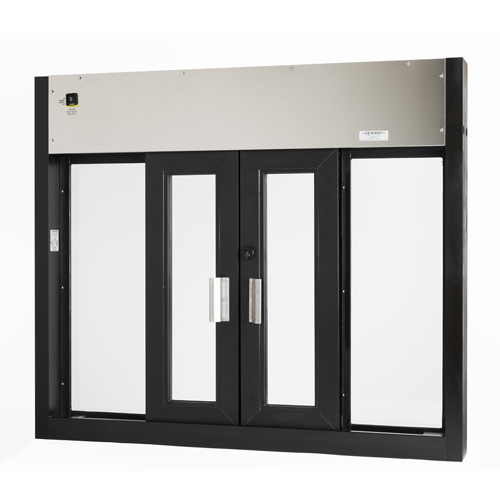

BP-4841E Bi-Parting Automatic Sliding Transaction Window


This 48?W x 41? bi-parting contactless transaction window offers a fully-automatic slider that glides smoothly on a top-hung slide rail system. Bi-parting transaction windows work almost twice as fast as single sliders. An offset in the base prevents outside intrusion and repels water from entering into your establishment. This unit can also be glazed with 1” insulated glass.

 BP-4841E Unit Size: 48"W x 41"H
 Service Opening: 17"Wx 29"H

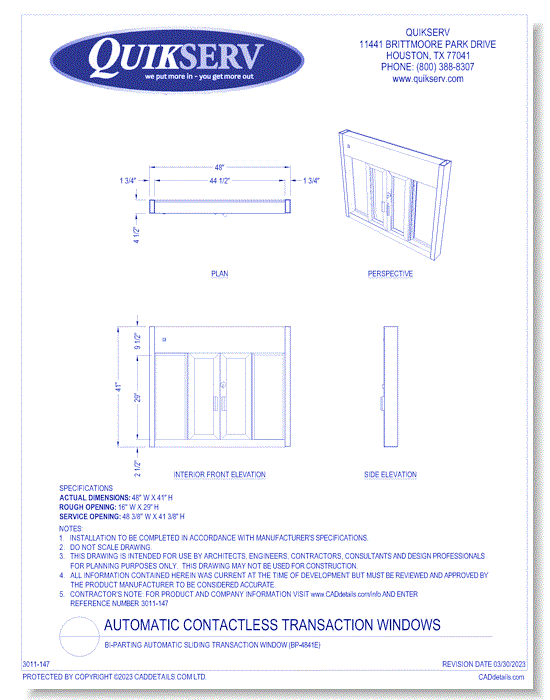

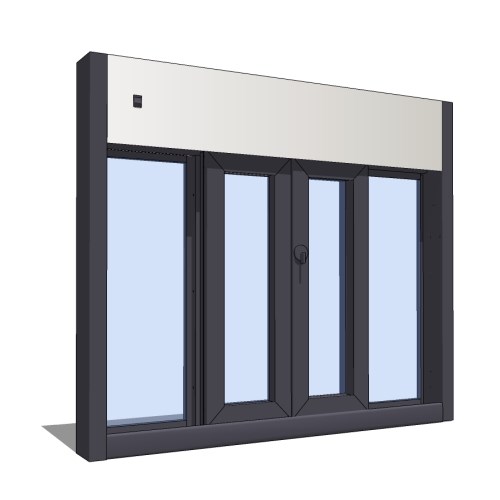

CAD Drawings BIM Models Quikserv BP-4841E Bi-Parting Automatic Sliding Transaction Window
CAD Drawings BIM Models Quikserv BP-4841E Bi-Parting Automatic Sliding Transaction Window CAD Drawings BIM Models Quikserv BP-4841E Bi-Parting Automatic Sliding Transaction Window CAD Drawings BIM Models Quikserv BP-4841E Bi-Parting Automatic Sliding Transaction Window
