Quikserv

CM-1 Bi-Fold Transaction Window


Transaction window model CM-1 is mounted flush to the exterior wall and is operated manually. This unit provides a large service opening and both doors operate simultaneously when opening.

 CM-1 Unit Size: 24?W x 38-1/2?H
 Service Opening: 16"W x 32"H

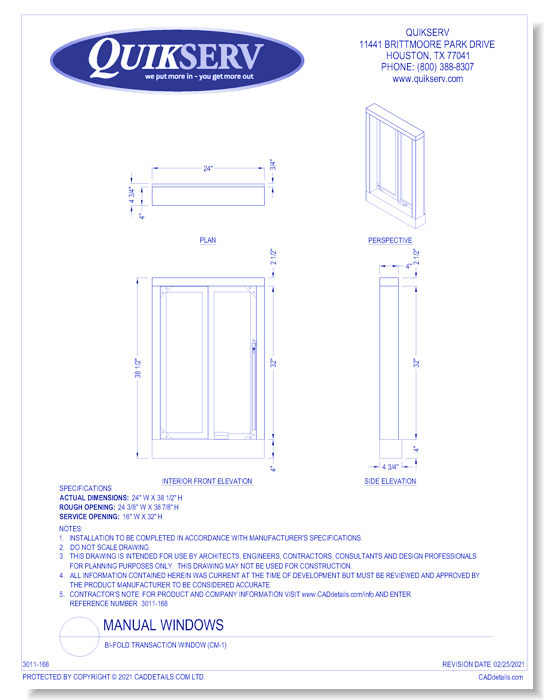

CAD Drawings BIM Models Quikserv CM-1 Bi-Fold Transaction Window
CAD Drawings BIM Models Quikserv CM-1 Bi-Fold Transaction Window CAD Drawings BIM Models Quikserv CM-1 Bi-Fold Transaction Window
