Quikserv

BRDW1-4851 / BRDW1-4855 Transaction Window & Drawer Combination

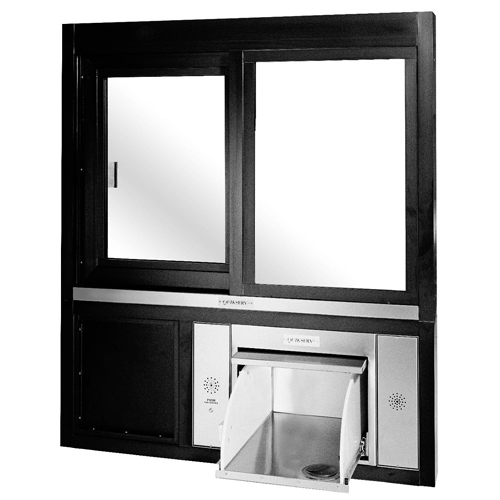

This transaction window and drawer combination unit offers daytime operation through either a self-closing manual slider or a bullet-resistant manual slider and nighttime operation through the transaction drawer. This unit may be ordered in Level 1 bullet-resistant glazing. We offer two different drawers that work in conjunction with the slider pictured: QSB-12S or QSP-713S. MODEL BRDW1-4851 (not shown) This is a smaller version of Model BRDW1-4855 using the QSP-713 transaction drawer. This combination unit offers daytime operation through either a self-closing manual slider or a bullet-resistant manual slider and nighttime operation through the transaction drawer. Standard glazing is ¼” clear tempered safety glass; however, this unit may be ordered in Level 1 bullet-resistant glazing.

 BRDW1-4851 Unit Size: 48?W x 51?H

 BRDW1-4855: Unit Size: 48?W x 55?H

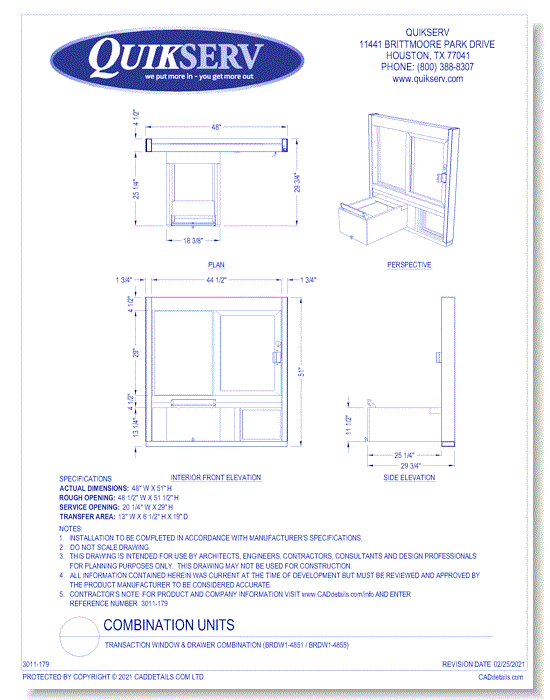

CAD Drawings BIM Models Quikserv BRDW1-4851 / BRDW1-4855 Transaction Window & Drawer Combination
