ChamClad

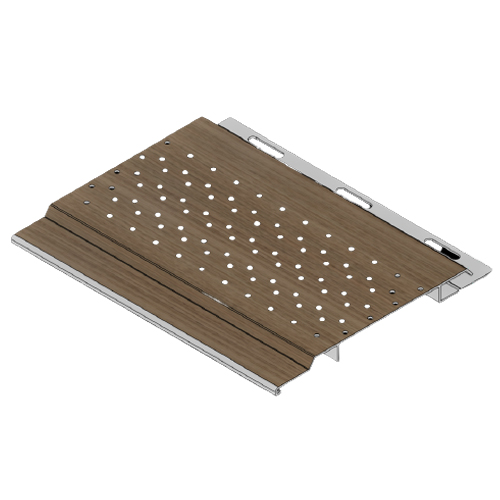

4" and 6" Ceiling and Soffit Panel Vented


Material: PVC

Both products are available in 12' and 20' lengths.

Exterior Products Applications

ChamClad® dual-profile is a versatile and simple architectural PVC panel. The installation is based on a tongue-and-groove with the product stacking from the bottom up known as a “stacker system”.

If you desire the U-Channel look, simply stack it one on top of the other by the row and insert it to the first stop.

If the desired profile is the V-Groove, simply take a non-marking rubber mallet and tap the top course further onto the board below to achieve the V-Groove.
CAD Drawings BIM Models ChamClad 4" and 6" Ceiling and Soffit Panel Vented
