ChamClad

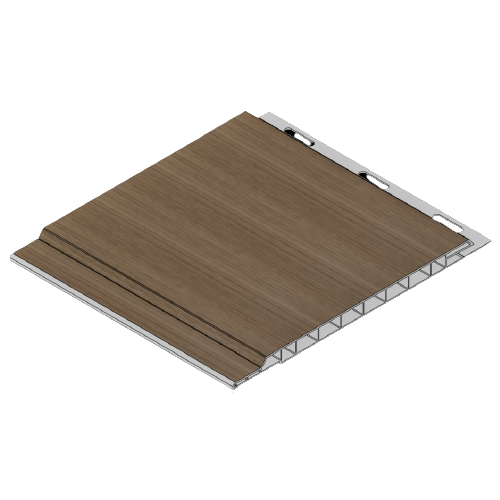

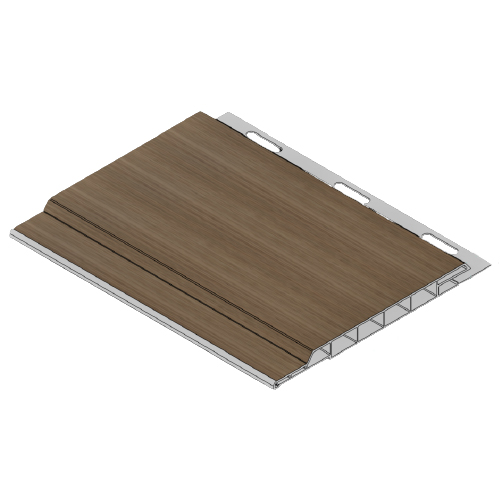

4" and 6" Ceiling and Soffit Panel


Material: PVC

4'' Available Lengths: 12' & 20'

6'' Available Lengths: 12', 20', 30'

Exterior Products Applications

ChamClad® dual-profile is a versatile and simple architectural PVC panel. The installation is based on a tongue-and-groove with the product stacking from the bottom up known as a “stacker system”.

If you desire the U-Channel look, simply stack it one on top of the other by the row and insert it to the first stop.

If the desired profile is the V-Groove, simply take a non-marking rubber mallet and tap the top course further onto the board below to achieve the V-Groove.
