Haws Corporation

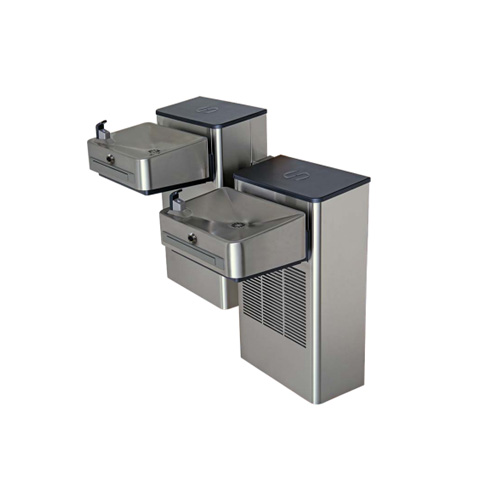

Model 1202SFH: Wall Mounted Hi-Lo ADA Filtered Touchless Water Cooler


The Haws 1202SFH wall-mount filtered Hi-Lo touchless water cooler is the newest addition to the most comprehensive hydration offering in the industry. The modern, innovative design is tailored to meld with office spaces, universities and airports, or serve the functional needs of spaces like a school gymnasium. The Hi-Lo dual station design allows for standard left-side high/right-side low ADA fountain access. The sensor operated solenoid valves provide hands-free hygienic operation. The pressure-regulating bubblers with flexible antimicrobial rubber mouth guards requires no adjusting. Fresh, always filtered water with the Electronic Lifecycle Control feature shuts water flow off when filter reaches its gallons capacity. Flow will begin again when filter is replaced.

  • Touchless operation for safety and peace of mind
  • Flexible bubbler mouth guards to protect against injury
  • Self-regulating flow - no need to adjust to varying incoming water pressures
  • Anti-rotational screwed-in-place bubbler heads
  • Instantaneous tankless water cooler for consistent cool water during use of unit
  • Smart energy savings feature powers down refrigeration system after 2 hours of non-use and the lights are shut off, and will automatically start again when used or light is restored to normal
  • High traffic area ready with a 3000-gallon (11,356 L) capacity filter
  • Retrofit installation compatibility over many existing water coolers
  • 100% lead free waterways
  • Unique basin design reduces water splashing and simplifies cleaning
  • Galvanized steel frame
  • Rated for indoor use
  • Designed and assembled in the USA

A bubbler head deactivation feature is available. This feature gives sites the flexibility to temporarily deactivate the flow to the drinking fountain bubbler heads. This option will have a drinking fountain "dip" switch under the bowl that can be deactivated or reactivated during or after installation. This deactivation can be reversed when normal drinking fountain usage is required. The feature provides facilities with the versatility to manage functionality of the unit to meet building and ADA compliance requirements.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

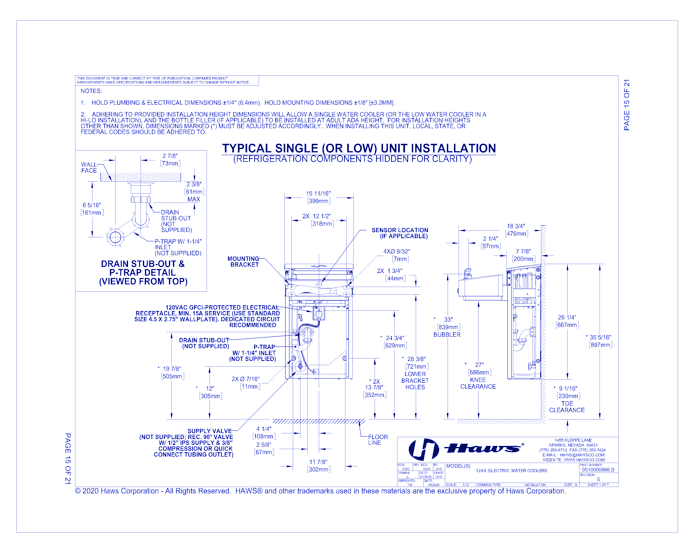

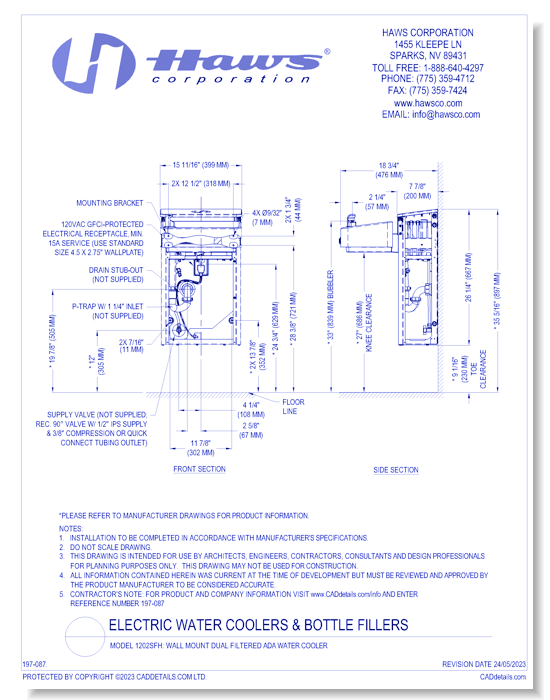

CAD Drawings Haws Corporation Model 1202SFH: Wall Mounted Hi-Lo ADA Filtered Touchless Water Cooler
