Adjustable Height Deck Supports: “NM Maxi”

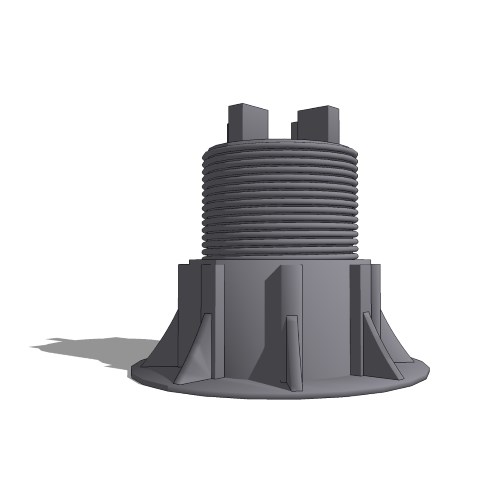

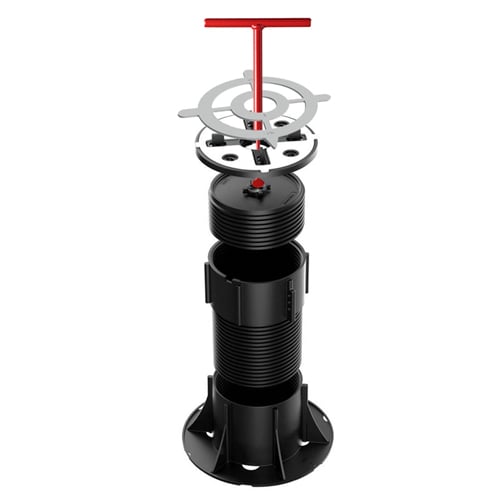

With a wide central column and base, Archatrak 'NM Maxi' adjustable height deck supports offer higher load capacity and greater stability than supports with smaller diameter columns, especially when laying pavers at heights above approx. 16”. A single piece head with a rubber surface and inbuilt spacer tabs ensures superior noise reduction and slip resistance. The fixed head design of the “NM Maxi” offers an economical alternative to our “Prime” pedestal with self-leveling head. Add-in head mounted twist rings can be supplied as required to provide variable slope compensation, each ring providing compensation up to 1%.

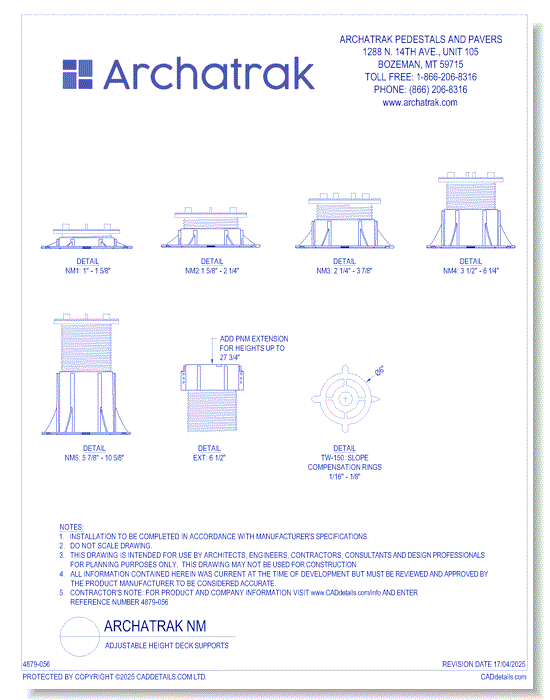

Five sizes of pedestals cover the range from 1” to 10 5/8”. Extension elements can be added to the NM5 pedestal to extend the workable height to over 39″.
