Superior Radiant Products

Model GRT


The SRP Series GRT two-stage garage heater high thermal efficiency and radiant output provides maximum energy savings and comfort for your garage and workshop all year round.

Features
  • Natural Gas and LPG
  • Two-stage configuration input rate high 45,000 and low 30,000 BTU/h
  • Hi/Lo indicator lights
  • Smart control ready terminal
  • Redesigned reflector with integrated deco grille
  • Thermal efficiencies above 82%
  • Includes 8' horizontal vent kit
  • Gas flex connector included
  • Includes ceiling mounting bracket *
  • Vertical vent kit optional
  • Direct spark ignition
  • Self-diagnostic ignition module
  • Preassembled construction - no loose parts, simplified installation.
  • Balanced flue construction - one wall opening, maximum safety, minimum installation cost
  • Approved to residential standards - AGA Reg. 7-89, CAN/CGA 2.5-M86.
  • CSA approved for outdoor use

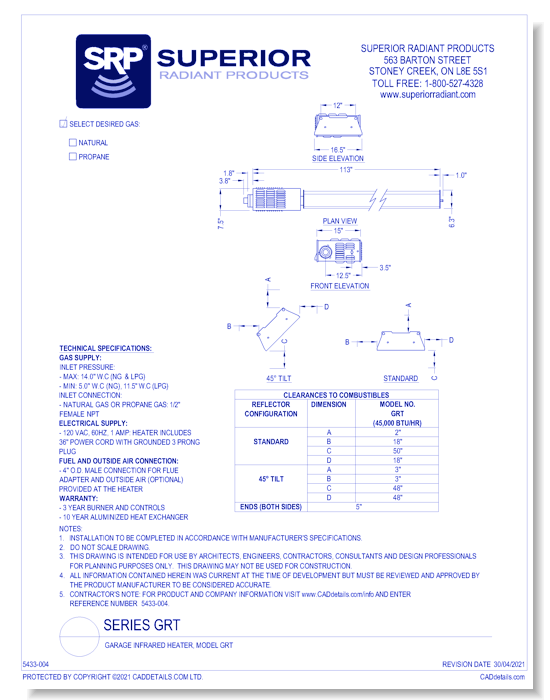

CAD Drawings BIM Models Superior Radiant Products Model GRT

Listing Back To Top

Design Visualizer

Design Visualizer

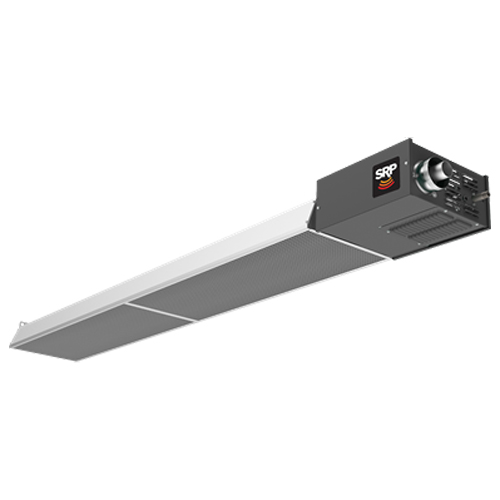

Garage Infrared Heater, Model GRT
