Superior Radiant Products

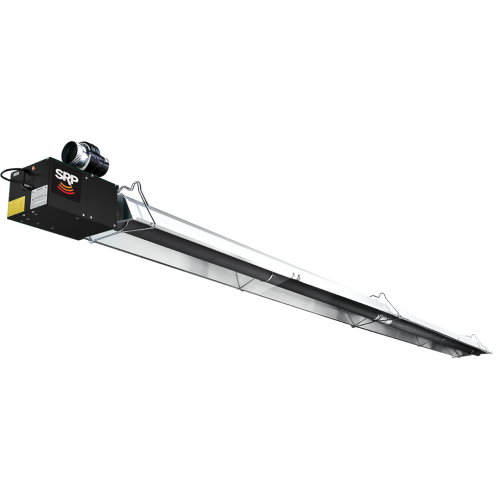

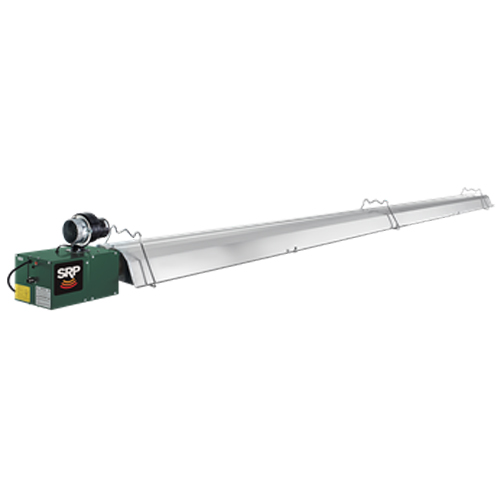

Model LA


Heavy duty industrial/commercial infrared heater featuring the best overall performance in the industry. Designed for low ceiling applications including animal confinement, hallways and service counters.

Features
  • End to end radiant output variance less than 15%
  • Ideal for animal confinement applications, low ceilings, hallways, service counters
  • 40,000 BTU/H, 30 or 40 feet long
  • 60,000 BTU/H, 30, 40 or 50 feet long
  • 80,000 BTU/H, 40, 50 or 60 feet long
  • 100,000 BTU/H, 50 feet long
  • Separate controls compartment isolates electrical components from air stream
  • Self diagnostic ignition module
  • 100% Efficient parabolic aluminum reflector
  • Direct spark ignition
  • Operating status lights
  • Option of 24v thermostat wiring
  • Vented or unvented
  • Natural Gas or LPG
  • Configurations: U, L, horizontal to 45
  • Hinged service cover – easy to service
  • Jet stream burner – improved heat distribution, better combustion
  • Heavy duty couplings – no leaks, cannot be over tightened
  • Three year warranty on all components
  • Seven year warranty on aluminized heat exchanger
  • Post purge feature will extend warranty

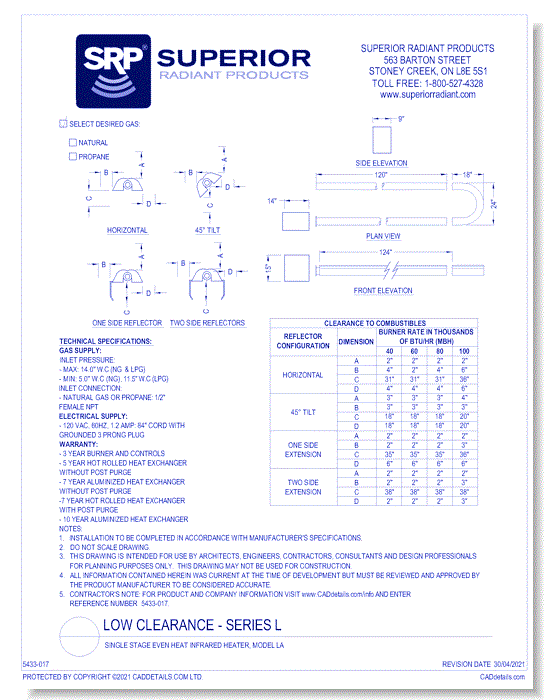

CAD Drawings BIM Models Superior Radiant Products Model LA

Listing Back To Top

Design Visualizer

Design Visualizer

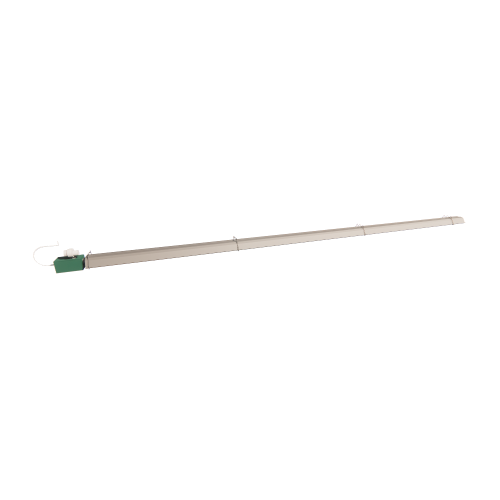

Single Stage Even Heat Infrared Heater, Model LA
Single Stage Even Heat Infrared Heater, Model LA
