Superior Radiant Products

Model LXR


Features
  • LXR model has all the characteristics of the LX with added features approved for harsh or outdoor environments
  • Completely enclosed flame does not flutter or blow out Rugged metal exterior is resistant to the elements and vandalism
  • Burner housing is internally sealed
  • Inlet and outlet vents are included
  • Stainless Steel burner boxes available
  • End to end radiant output variance less than 15%
  • Ideal for animal confinement applications, low ceilings, hallways, service counters
  • Separate controls compartment isolates electrical components from air stream
  • Self diagnostic ignition module
  • 100% Efficient parabolic aluminum reflector
  • 40,000 BTU/H, 30 or 40 feet long
  • 60,000 BTU/H, 30, 40 or 50 feet long
  • 80,000 BTU/H, 40, 50 or 60 feet long
  • 100,000 BTU//H, 50 feet long
  • Heat exchanger is heat treated aluminized steel tubing
  • Natural Gas or LPG
  • Configurations: U, L, horizontal to 45
  • Jet stream burner – improved heat distribution, better combustion
  • Heavy duty couplings – no leaks, cannot be over tightened
  • Three year warranty on all components
  • Ten year warranty on aluminized heat exchanger with post purge feature
  • Direct spark ignition
  • Operating status lights
CAD Drawings BIM Models Superior Radiant Products Model LXR

Listing Back To Top

Design Visualizer

Design Visualizer

Single Stage Even Heat Infrared Heater, Model LXR

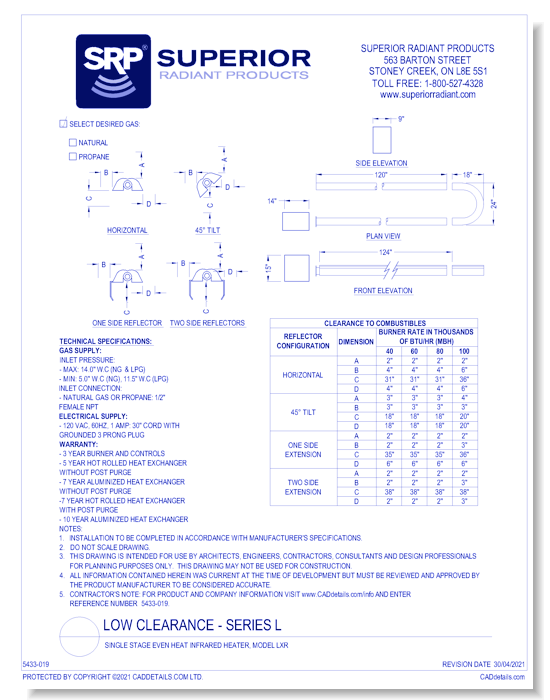

Single Stage Even Heat Infrared Heater, Model LXR
