Superior Radiant Products

Model UX


Features
  • UX features a totally enclosed burner construction
  • 40,000 to 220,000 BTU/h
  • Natural Gas and LPG
  • Configurations of "U" and "L", horizontal or 45°
  • Separated Controls compartment – electronics out of air stream, the burner can run during servicing
  • Self-diagnostic ignition module
  • Parabolic aluminum reflectors – most efficient in the industry
  • Direct spark ignition
  • Vented or unvented
  • Jet Stream burner – improved heat distribution, better combustion
  • Heavy duty couplings – no leaks, cannot be over tightened
  • Operating status light
  • Low voltage controls
  • Three-year warranty on all components
  • Five-year warranty on hot-rolled heat exchanger
  • Seven-year warranty on aluminized heat exchanger
  • 10-year warranty on the aluminized heat exchanger with post purge feature

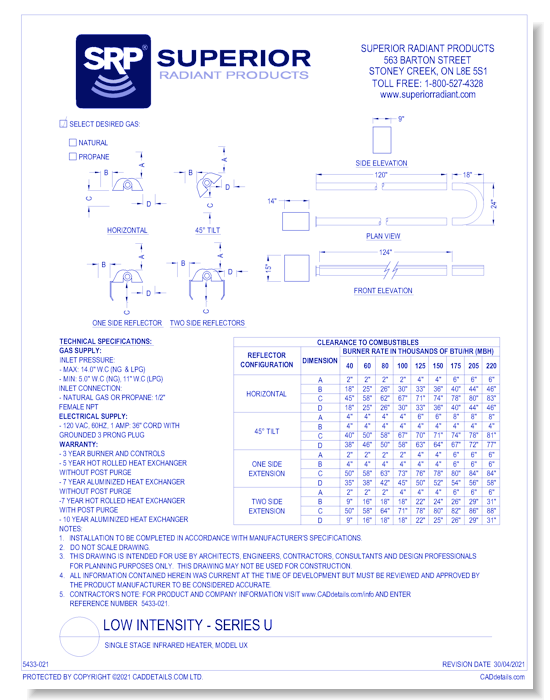

CAD Drawings BIM Models Superior Radiant Products Model UX

Listing Back To Top

Design Visualizer

Design Visualizer

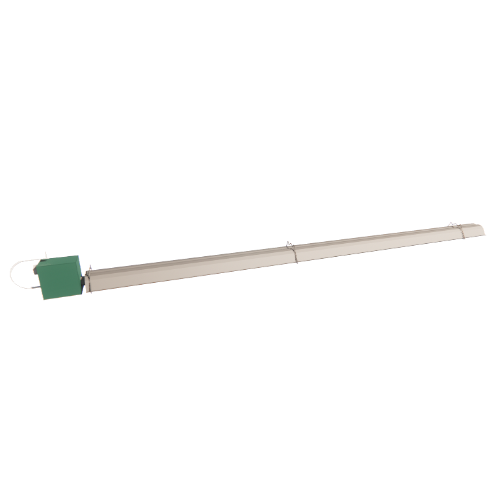

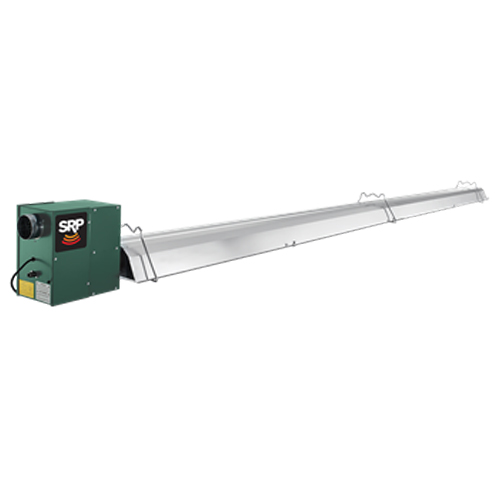

Single Stage Infrared Heater, Model UX
Single Stage Infrared Heater, Model UX

Downloads

Architectural Product Information

About Education Specs Media

CAD Toolbar

CADdetails™
PDF DWF DWG Printable CAD VWX DXF

BIM & 3D Toolbar

Manufacturer 3D
Manufacturer Revit Family
