Superior Radiant Products

Model LTA


Features

  • End to end radiant output variance less than 15%
  • Ideal for animal confinement applications, low ceilings, hallways, service counters
  • Hi-lo rates (1000 btu/h): 40/30; 60/45; 80/60; 100/75
  • Lengths range from 30 to 60 feet
  • Separate controls compartment isolates electrical components from air stream
  • Self diagnostic ignition module
  • 100% Efficient parabolic aluminum reflector
  • Direct spark ignition
  • Operating status lights
  • Option of 24v thermostat wiring
  • Vented or unvented
  • Natural Gas or LPG
  • Two-Stage Control – quick recover on high fire, economical operation on low fire
  • Configurations: U, L, horizontal to 45
  • Hinged service cover – easy to service
  • Jet stream burner – improved heat distribution, better combustion
  • Heavy-duty couplings – no leaks, cannot be over tightened
  • Three-year warranty on all components
  • Seven-year warranty on aluminized heat exchanger
  • Post purge feature will extend the warranty

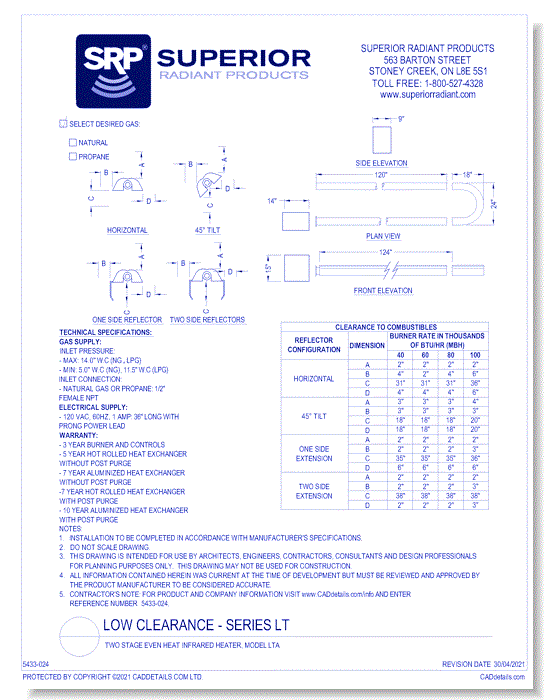

CAD Drawings BIM Models Superior Radiant Products Model LTA

Listing Back To Top

Design Visualizer

Design Visualizer

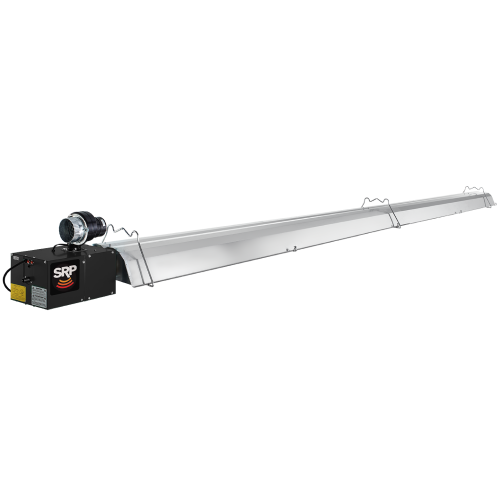

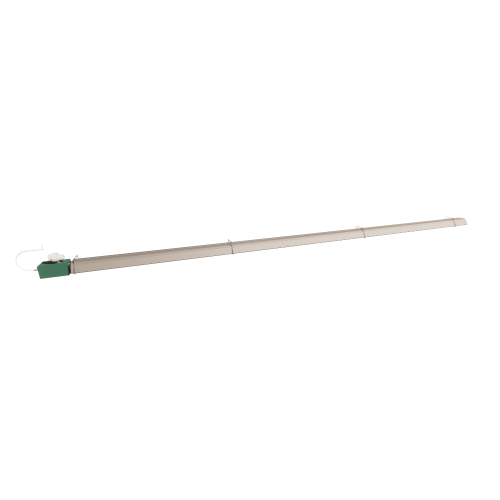

Two Stage Even Heat Infrared Heater, Model LTA
Two Stage Even Heat Infrared Heater, Model LTA
