Superior Radiant Products

Model LTXR


Features
  • LTXR model features a totally enclosed construction with post purge
  • End to end radiant output variance less than 15%
  • Ideal for animal confinement applications, low ceilings, hallways, service counters
  • Hi-lo rates (1000 btu/h): 40/30; 60/45; 80/60; 100/75
  • Lengths range from 30 to 60 feet
  • Separate controls compartment isolates electrical components from air stream
  • Self diagnostic ignition module
  • 100% Efficient parabolic aluminum reflector
  • Vented or unvented
  • Direct spark ignition
  • Two Stage Control – quick recovery on high fire, economical operation on low fire
  • Natural Gas or LPG
  • Configurations: U, L, horizontal to 45
  • Jet stream burner – improved heat distribution, better combustion
  • Heavy duty couplings – no leaks, cannot be over tightened
  • Three year warranty on all components
  • Ten year warranty on aluminized heat exchanger with post purge feature
  • Operating status lights
CAD Drawings BIM Models Superior Radiant Products Model LTXR

Listing Back To Top

Design Visualizer

Design Visualizer

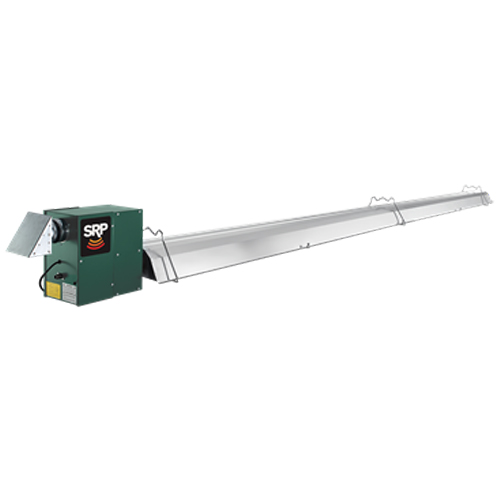

Two Stage Even Heat Infrared Heater, Model LTXR
Two Stage Even Heat Infrared Heater, Model LTXR
