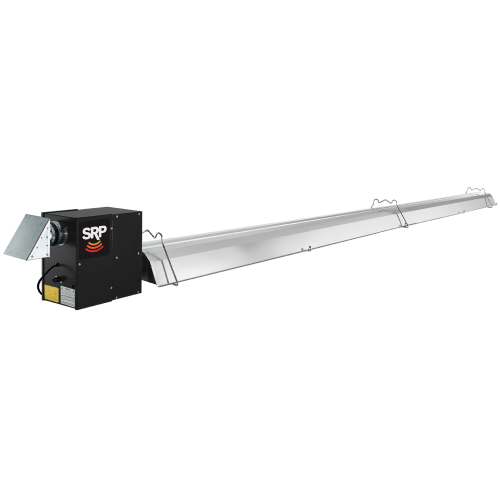

Model LTXR
Features
- LTXR model features a totally enclosed construction with post purge
- End to end radiant output variance less than 15%
- Ideal for animal confinement applications, low ceilings, hallways, service counters
- Hi-lo rates (1000 btu/h): 40/30; 60/45; 80/60; 100/75
- Lengths range from 30 to 60 feet
- Separate controls compartment isolates electrical components from air stream
- Self diagnostic ignition module
- 100% Efficient parabolic aluminum reflector
- Vented or unvented
- Direct spark ignition
- Two Stage Control – quick recovery on high fire, economical operation on low fire
- Natural Gas or LPG
- Configurations: U, L, horizontal to 45
- Jet stream burner – improved heat distribution, better combustion
- Heavy duty couplings – no leaks, cannot be over tightened
- Three year warranty on all components
- Ten year warranty on aluminized heat exchanger with post purge feature
- Operating status lights
Listing Back To Top

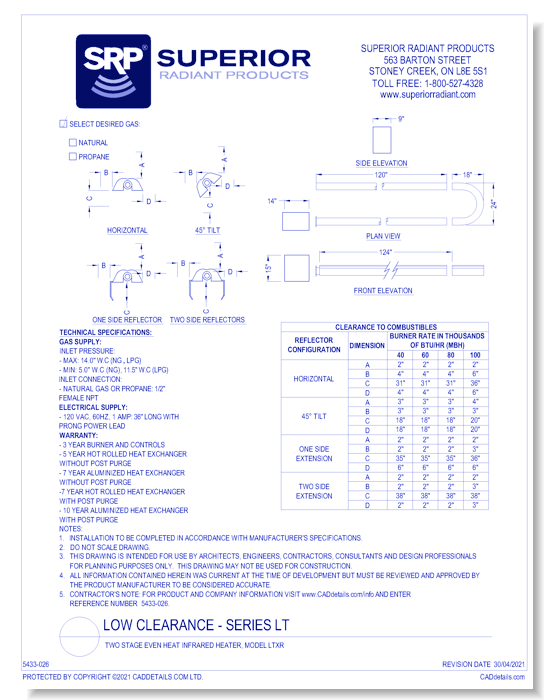

Design Visualizer
