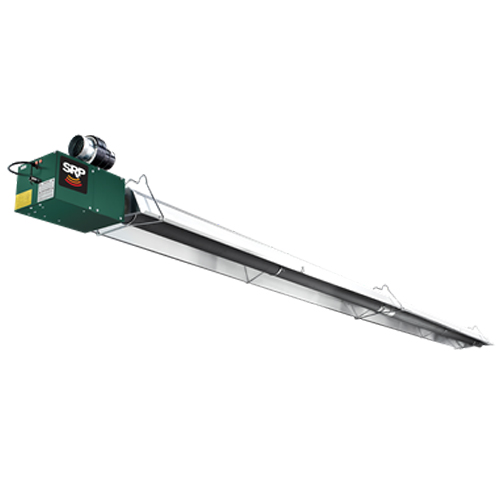

Superior Radiant Products

Model TA


Features
  • Two stage heater – dual output for improved rate differential, 40,000 to 220,000 btu/h
  • Natural Gas or LPG
  • Configurations of "U" and "L", horizontal or 45°
  • Separated controls compartment – electronics out of air stream, burner can run during servicing
  • Self diagnostic ignition module
  • Parabolic aluminum reflectors – most efficient in industry
  • Direct spark ignition
  • Vented or unvented
  • Hinged service cover – easy to service
  • Jet Stream burner – improved heat distribution, better combustion
  • Heavy duty couplings – no leaks, cannot be over tightened
  • Operating status lights
  • Low voltage controls
  • Three year warranty on all components
  • Five year warranty on hot rolled heat exchanger
  • Seven year warranty on aluminized heat exchanger with post purge feature
  • 10 year warranty on optional aluminized heat exchanger with post purge feature
  • Post purge
CAD Drawings BIM Models Superior Radiant Products Model TA

Listing Back To Top

Design Visualizer

Design Visualizer

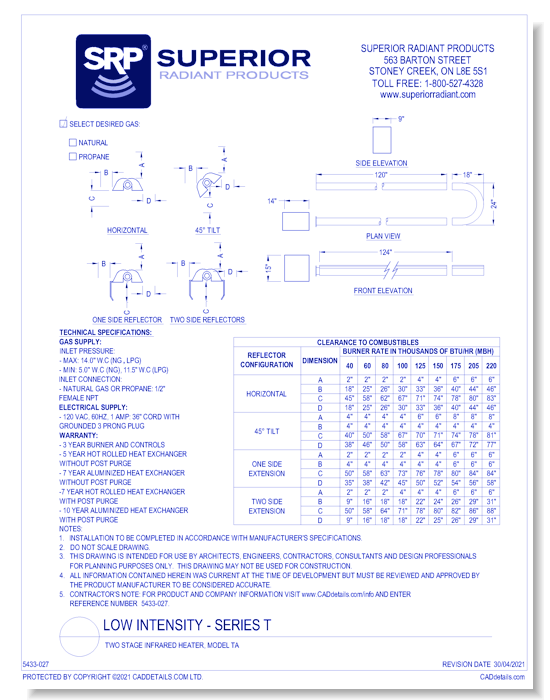

Two Stage Infrared Heater, Model TA

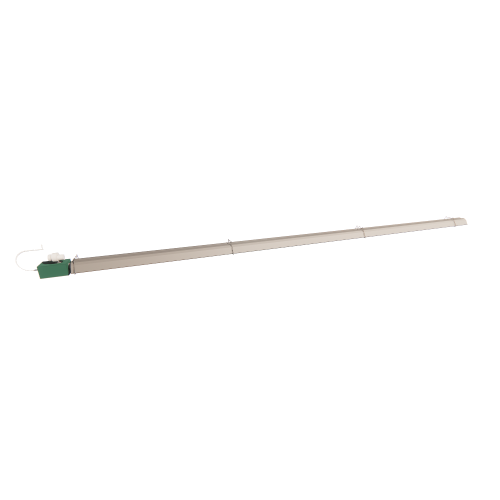

Two Stage Infrared Heater, Model TA
