Superior Radiant Products

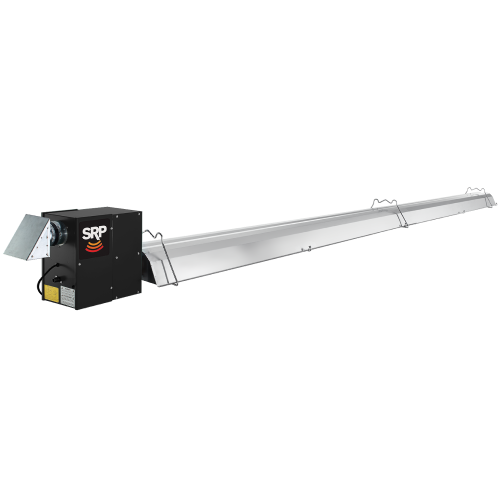

Model TXR


Features
  • Two stage heater – Approved for outdoor use
  • 40,000 to 220,000 btu/h
  • Natural Gas or LPG
  • Configurations of "U" and "L", horizontal or 45°
  • Separated controls compartment – electronics out of air stream, burner can run during servicing
  • Self diagnostic ignition module
  • Parabolic aluminum reflectors - Most efficient in industry
  • Direct spark ignition
  • Vented or unvented
  • Jet Stream burner – improved heat distribution, better combustion
  • Heavy duty couplings – no leaks, cannot be over tightened
  • Operating status lights
  • Low voltage controls
  • TXR features burner box sealed for outdoor conditions
  • Rubber gaskets are used instead of fiber
  • Silicone used to seal corners and joints
  • Weather resistant electrical components used for exterior connections
  • Stainless steel burner boxes available as well as tubing and reflectors
  • Units are wind resistant
  • Three year warranty on all components
  • Five year warranty on hot rolled heat exchanger
  • Seven year warranty on aluminized heat exchanger
  • 10 year warranty on aluminized heat exchanger with post purge feature

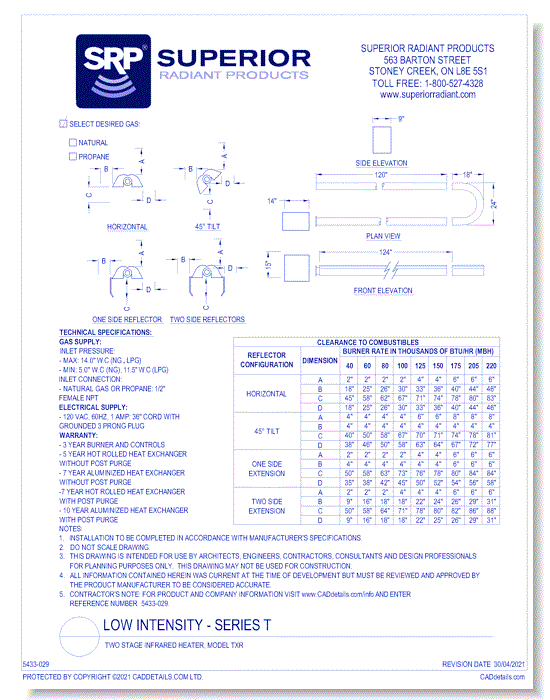

CAD Drawings BIM Models Superior Radiant Products Model TXR

Listing Back To Top

Design Visualizer

Design Visualizer

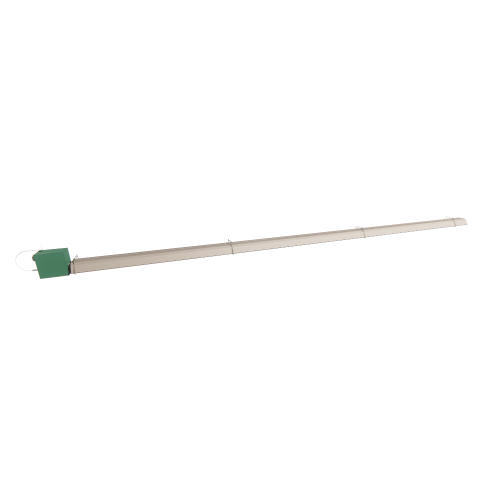

Two Stage Infrared Heater, Model TXR

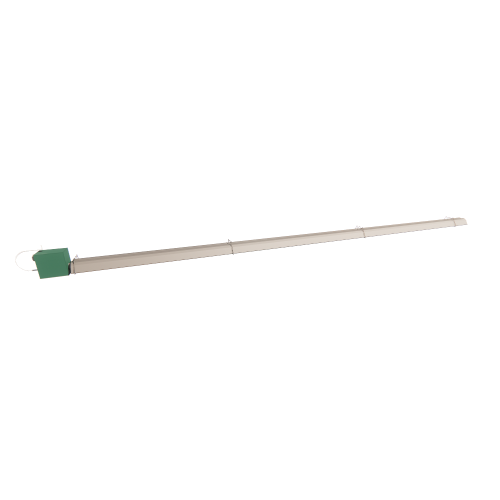

Two Stage Infrared Heater, Model TXR
