VIVA RAILINGS LLC

SHOE BAFFLE Railing System

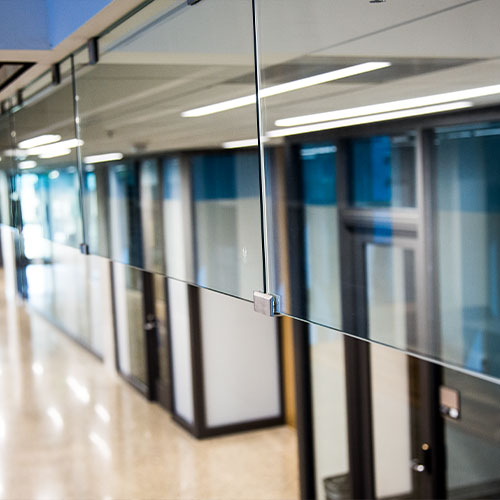

VIVA Smoke Baffle System (SBS -1 & SBS-2) comes in various design options, each of them designed to give an inconspicuous smoke barrier between slab openings, level changes or divisions of areas. Today’s fire codes require smoke curtains to building areas within manageable levels, in the event of smoke. This, in turn, allows the optimum design of smoke alarm systems and fire sprinkler systems.

VIVA Smoke Baffle System design options provide you a seamless transition of the aesthetics of VIVA Railings that you have come to love. In each of these options glass is secured with through bolts providing you a very secure installation.

Available Finishes: Stainless Steel, Powder Coat Standard or Custom Colors or Anodized Aluminum
CAD Drawings BIM Models VIVA RAILINGS LLC SHOE BAFFLE Railing System
