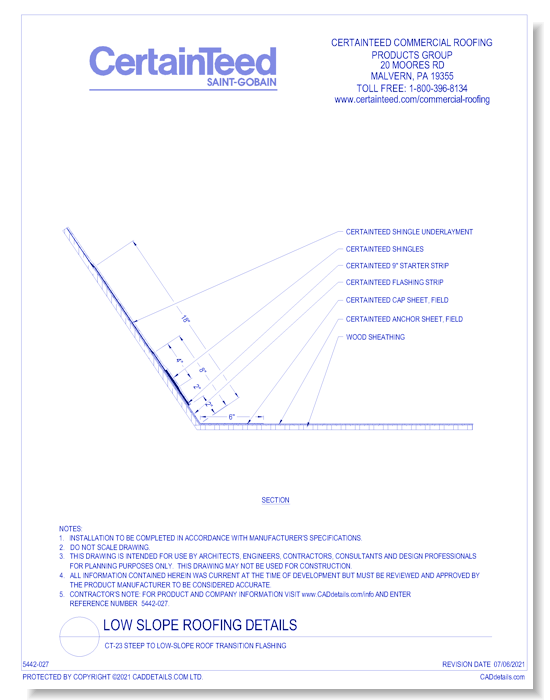

CT-23 Steep to Low-Slope Roof Transition Flashing


Roofs are frequently interrupted by the intersection of adjoining roof sections adjacent walls, or penetrations such as skylights, mechanical equipment curbs and plumbing soil-pipe stacks. This creates opportunities for leakage. Special steps must be taken at these locations for weather protection.

The components used to control water entry at these locations are usually called flashings.
CAD Drawings BIM Models CertainTeed Commercial Roofing CT-23 Steep to Low-Slope Roof Transition Flashing

Listing Back To Top

Design Visualizer

Design Visualizer

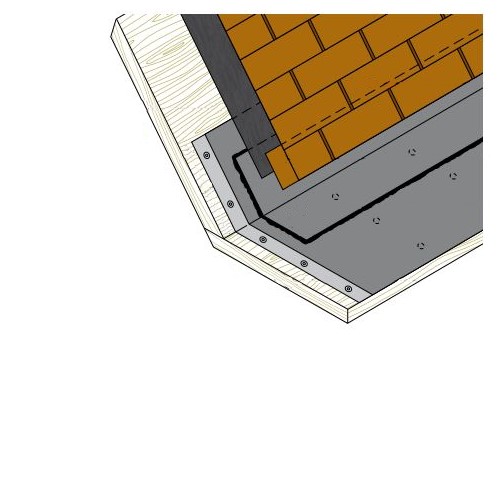

CT-23 Steep to Low-Slope Roof Transition Flashing
CT-23 Steep to Low-Slope Roof Transition Flashing
