Greenspoke

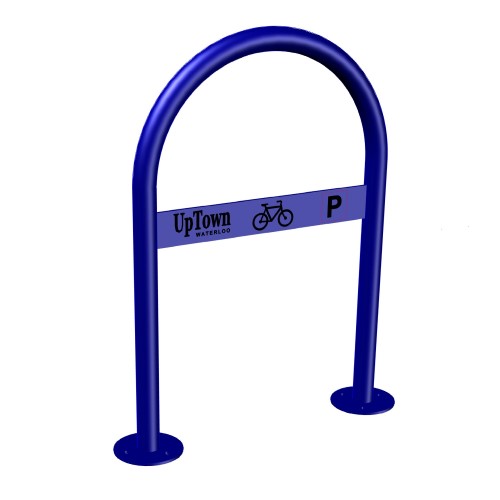

(850050) Single Arch Rack, with Graphics Bar, Surface Mount


The Single Arch conveniently parks 2 bikes and maintains a slim profile when not in use.

2 BIKE CAPACITY
SURFACE MOUNT
IN-GROUND MOUNT
CUSTOM LOGO OPTION AVAILABLE

AVAILABLE MODELS:
850220 | Surface
850225 | In-Ground
850400 | Surface (8” Custom Logo Plate)
850405 | In-Ground (8” Custom Logo Plate)
H: 35” W: 24” D: 5”
850050 | Surface (3” Graphics Bar)
850055 | In-Ground (3” Graphics Bar)
H: 35” W: 24” D: 6”
Add 18” (embedded) for In-Ground

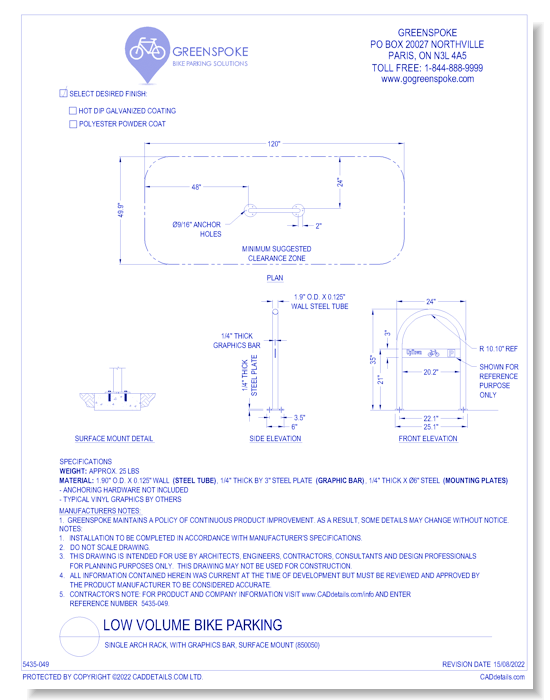

CAD Drawings BIM Models Greenspoke (850050) Single Arch Rack, with Graphics Bar, Surface Mount
