Marshalls

Ultra Shallow 50 Beam


Incorporating the RhinoGuard® Ultra Shallow 50®, the RhinoGuard® Beam has been crash tested to the IWA 14.1 standard and can successfully stop a 7.2 tonne vehicle traveling at 30mph.

With tailored length options available to suit the scheme’s requirements, the protective barrier has the capability of spanning manholes, services, chambers and other obstacles, whilst allowing for expansion and contraction.

Requiring just 50mm of foundation depth, the RhinoGuard® Beam offers the perfect solution for use on bridges and other areas where underground service and utilities affect installation.

The demountable structure can be removed quickly to provide access for plant and equipment or emergency service vehicles should this be required.

The customizable design allows the barrier to coordinate with the surrounding aesthetics, enhancing the environment whilst providing the appropriate level of protection required, keeping people safe... not scared®.

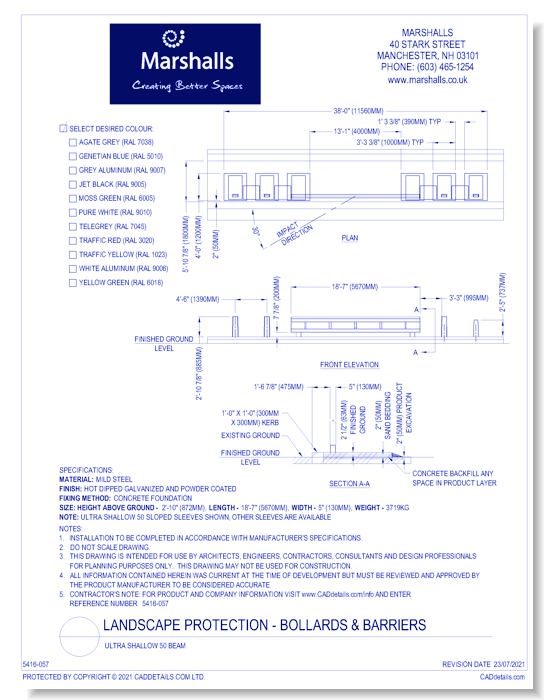

CAD Drawings Marshalls Ultra Shallow 50 Beam
CAD Drawings Marshalls Ultra Shallow 50 Beam
CAD Drawings Marshalls Ultra Shallow 50 Beam
CAD Drawings Marshalls Ultra Shallow 50 Beam
