IAM Design

Glass Da Vinci Railing System

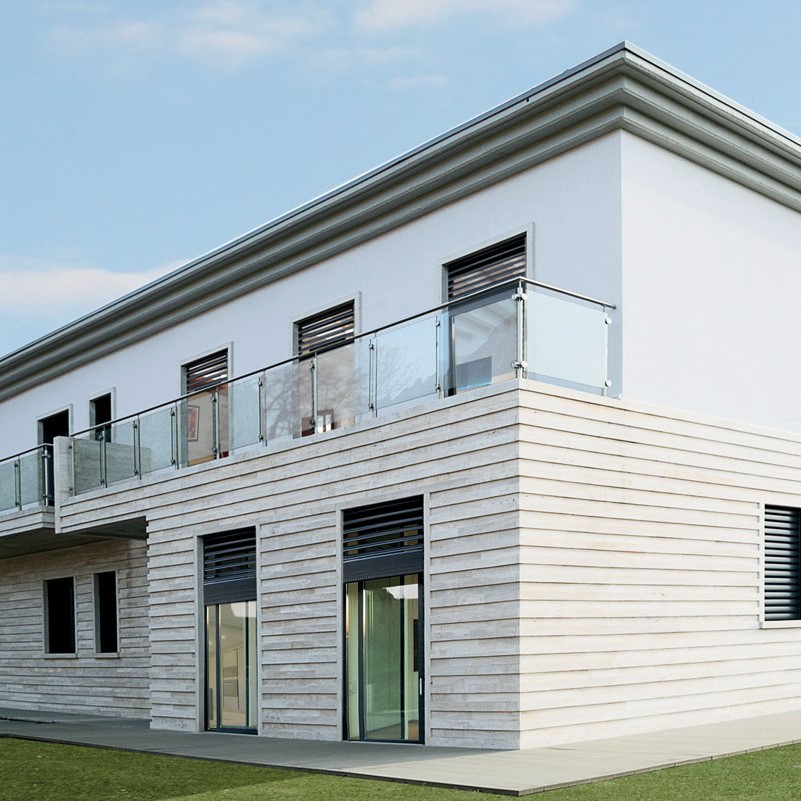

The systems allow you to create glass railings through the use of the Da Vinci clamp support. Thanks to the interchangeable anchorage, it can be adapted to any type of pillar.

The Glass Da Vinci systems allow you to create glass railings through the use of the clamp support. By virtue of its circular shape, the accessory simultaneously supports two glass sheets. The kit of rubber seals in different thicknesses allows the use of monolithic or laminated glass of variable thickness.
CAD Drawings IAM Design Glass Da Vinci Railing System
CAD Drawings IAM Design Glass Da Vinci Railing System
CAD Drawings IAM Design Glass Da Vinci Railing System
CAD Drawings IAM Design Glass Da Vinci Railing System
