IAM Design

BackBone Single Stairway System


The modular system that allows to create stairways, both linear and curved.

This system is particularly interesting for its flexibility, given by the ability to rotate along the vertical element of the base module, by the possibility of using rings that regulate the step tread as well as various other types of accessories that allow you to work with supports earth, wall or via live ropes.

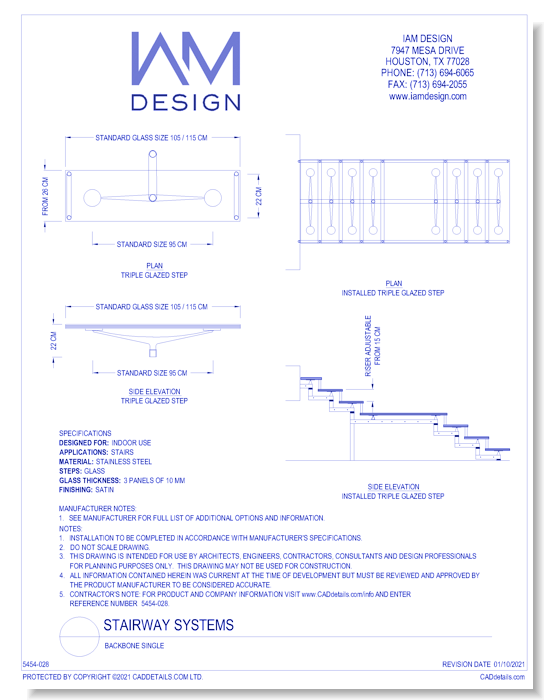

CAD Drawings IAM Design BackBone Single Stairway System
CAD Drawings IAM Design BackBone Single Stairway System
