Model BR 3024 Series, Bicycle Rack


MODEL BR 3024 SERIES, BICYCLE RACK

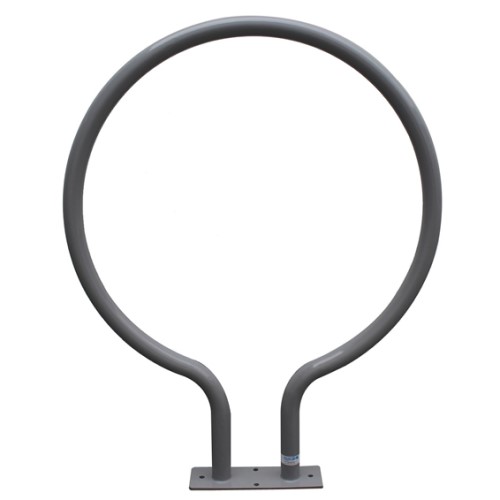

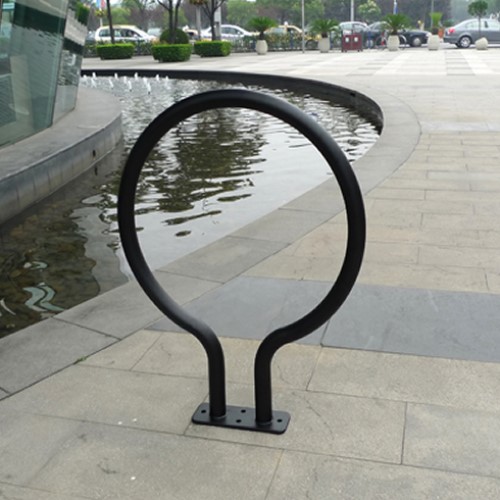

A classic deviation of the standard inverted “U” racks with the same functional and structural advantages. Fabricated from 1.9”O.D. or 2.375” O.D. x .180” Wall Structural and Mechanical Steel Tubing. Bicycle makes contact with the rack in two places for additional stability and security. Simple, attractive, economical and space saving design is ideal for city sidewalks. Optional center cross bars available to make the racks more ADA friendly and to provide greater stability.

MOUNTING OPTIONS

Embedded mount (standard) or flanged surface mount (optional). Designate “-E” for embedded racks or “-F” for flanged racks after the model number.

FINISH OPTIONS

Hot-dipped galvanized (standard & recommended); polyester powder coated (optional); thermoplastic powder coat (optional); stainless steel with a satin finish (optional). Designate “-G”; “-P”, “-T”, or “-SS” for galvanized, powder coated, thermoplastic coated, or stainless steel finish respectively after the mounting designation.

CAPACITY

2

DIMENSIONS

36”Wx36.5”T


CAD Drawings SCH Enterprises LLC Model BR 3024 Series, Bicycle Rack
CAD Drawings SCH Enterprises LLC Model BR 3024 Series, Bicycle Rack
CAD Drawings SCH Enterprises LLC Model BR 3024 Series, Bicycle Rack
