SCH Enterprises LLC

Model BR 3023 Series, Bicycle Rack

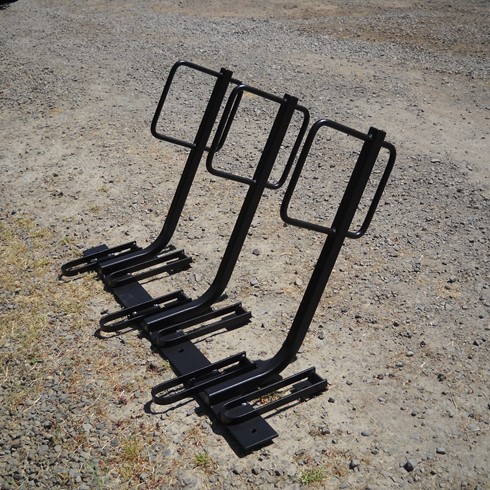

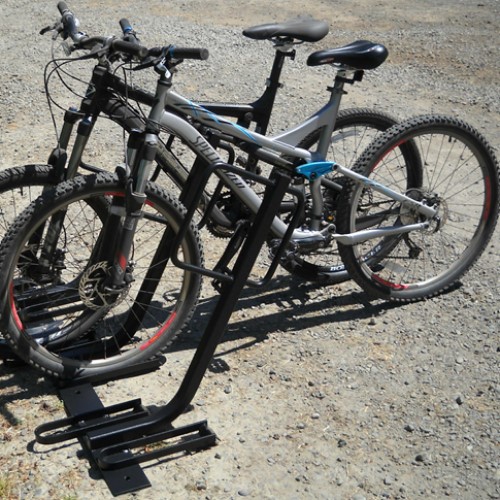

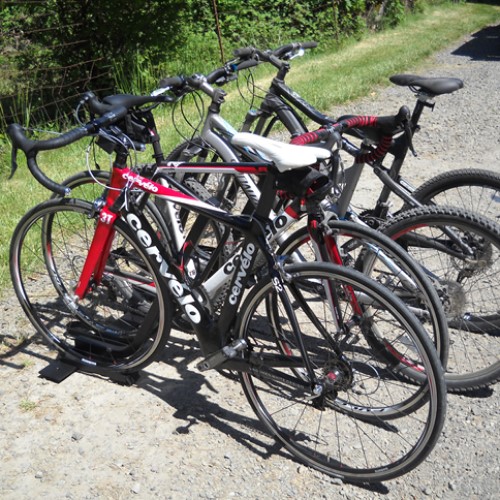

MODEL BR 3023 SERIES, BICYCLE RACK

MODELS

• BR3023-P: Perpendicular Bicycle Rack
• BR3023-XP: Double-Sided Bicycle Rack

SIZE OPTIONS

• BR3023-P: 1, 2, 3, 4. Designate the number of posts after the model designation.
• BR3023-XP: 2, 3, 4, or 5 posts. Designate the number of posts after the model designation.

MOUNTING OPTIONS

Surface

FINISH OPTIONS

• T.G.I.C. polyester powder coat; Hot-dipped galvanized; Thermoplastic powder coat; or brushed stainless steel. Designate “PC”, “G”, “T”, or “SS” respectively for the desired finish after the size designation.


BR3023 -P Racks
(Perpendicular BR3023 Series Racks)

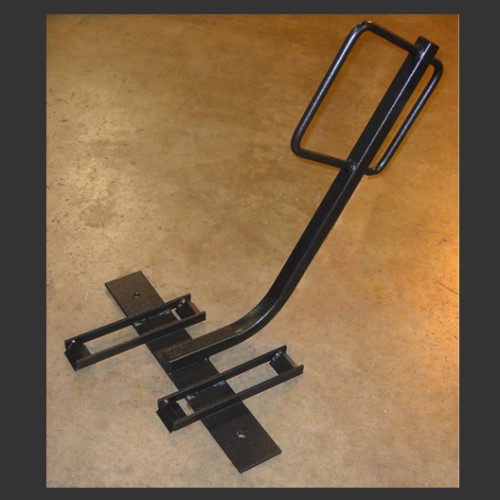

• Model # BR3023-P 2
Description 1 Post Bike Rack
Capacity 2 Bikes
Dimensions 30”L x 28”H x 25”D
• Model # BR3023-P 4
Description 2 Post Bike Rack
Capacity 4 Bikes
Dimensions 67.5”L x 28”H x 25”D
• Model # BR3023-P 6
Description 3 Post Bike Rack
Capacity 6 Bikes
Dimensions 90”L x 28”H x 25”D
• Model # BR3023-P 8
Description 4 Post Bike Rack
Capacity 8 Bikes
Dimensions 112.5”L x 28”H x 25”D

BR3023 -XP Racks
(Perpendicular Double Sided BR3023 Series Racks)

• Model # BR3023-XP 4
Description 2 Post Bike Rack
Capacity 4 Bikes
Dimensions 41”L x 28”H x 39”D
• Model # BR3023-XP 6
Description 3 Post Bike Rack
Capacity 6 Bikes
Dimensions 67.5”L x 28”H x 39”D
• Model # BR3023-XP 8
Description 4 Post Bike Rack
Capacity 8 Bikes
Dimensions 78.5”L x 28”H x 39”D
• Model # BR3023-XP 10
Description 5 Post Bike Rack
Capacity 10 Bikes
Dimensions 112.5”L x 28”H x 39”D
