SCH Enterprises LLC

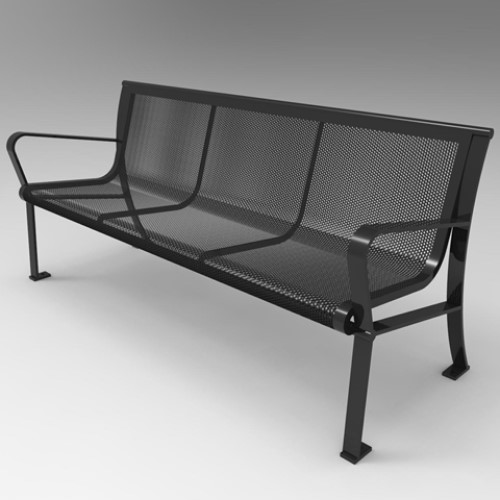

Model BN 2016-B, Backed Bench and Model BN 2016-BL, Backless Bench


MODEL BN 2016-B, BACKED BENCH AND MODEL BN 2016-BL, BACKLESS BENCH

MODEL AND MATERIAL

• Model BN 2016-B, Backed Bench
• Model BN 2016-BL, Backless Bench

END FRAME

2” x ½” solid steel flat stock

SEAT MATERIAL OPTIONS

Flat bar slats; perforated steel sheet (round or square); solid sheet steel; 5/8” solid round bar/tube; laser cut steel straps; horizontal laser cut flat bar; vertical laser cut flat bar; or customized laser cut or perforated steel sheet. Designate “-FB”, “-PS”, “-SS”, “-RB”, “-LS”, “-HLF”, “-VLF”, “-CLS” or “-CPS” respectively for seating material after the model number.
(Note: Customized bench options are not shown on this sheet).

STANDARD SIZES

Standard bench lengths are 24”, 48”, 72”, or 96”. Designate “-24”, “-48”, “-72”, or “-96” after the seat material designation for a 24”, 48”, 72” or 96” bench respectively.

MOUNTING OPTIONS

Embedded; surface mounted for bolting to existing concrete; freestanding. Designate “-E”, “-SM”, or “-FS”, after the bench size for an embedded, surface mounted, or freestanding bench respectively.

FINISH OPTIONS

Hot-dipped galvanized; polyester powder coated; thermoplastic powder coated; stainless steel with a #4 satin finish. Designate “-G”, “-P”, “-T”, “-SS” for galvanized, polyester powder coated, thermoplastic powder coated, or stainless steel after the mounting option.

ADDITIONAL OPTIONS

Armrests: Designate the number, if any, of intermediate armrests after the finish option.
• Model # BN2016-B™ 24
Dimensions 24”Lx32.5”Tx27”D
• Model # BN2016-B™ 48
Dimensions 48”Lx32.5”Tx27”D
• Model # BN2016-B™ 72
Dimensions 72”Lx32.5”Tx27”D
• Model # BN2016-B™ 96
Dimensions 96”Lx32.5”Tx27”D
• Model # BN2016-BL™ 24
Dimensions 24”Lx18”Tx23”D
• Model # BN2016-BL™ 48
Dimensions 48”Lx18”Tx23”D
• Model # BN2016-BL™ 72
Dimensions 72”Lx18”Tx23”D
• Model # BN2016-BL™ 96
Dimensions 96”Lx18”Tx23”D

NOTES

1. PERFORATED SHEET STEEL IS AVAILABLE WITH EITHER ROUND OR SQUARE PERFORATIONS.
2. NOTE: LEVELING FEET ARE AVAILABLE ON ALL FREESTANDING BENCHES. DESIGNATE “-LF” AS THE LAST DESIGNATION.
3. THE 2’ VERSION OF THIS BENCH COMPLIMENTS THE CAFÉ TABLES AND ARE OFTEN PURCHASED TOGETHER AS A SET.
CAD Drawings SCH Enterprises LLC Model BN 2016-B, Backed Bench and Model BN 2016-BL, Backless Bench
CAD Drawings SCH Enterprises LLC Model BN 2016-B, Backed Bench and Model BN 2016-BL, Backless Bench
