SCH Enterprises LLC

Model AU 1002 Ash Urns

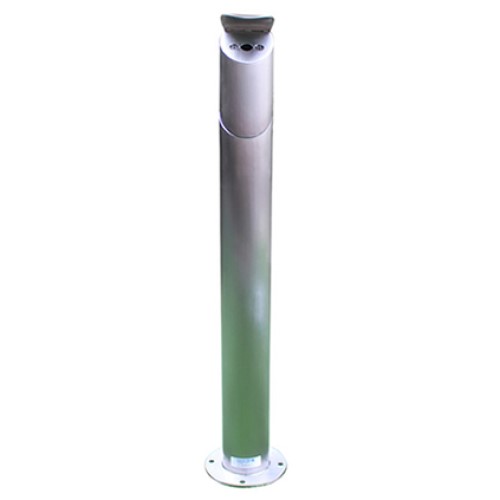

MODEL AU1002 ASH URNS

DESIGN

This bollard style ash urn has been redesigned in the following ways:

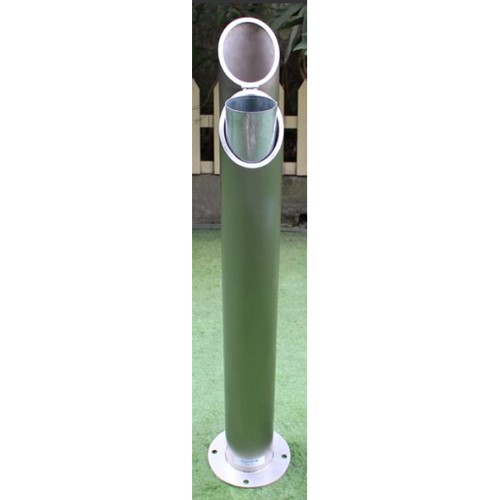

1. The top is now hinged as opposed to removable which results in the following advantages: a. The top is permanently attached to the ash urn and is less likely to be lost or stolen; and b. The retrieval of the internal liner is easier to access for emptying since you do not have to deal with the removable twist off top.

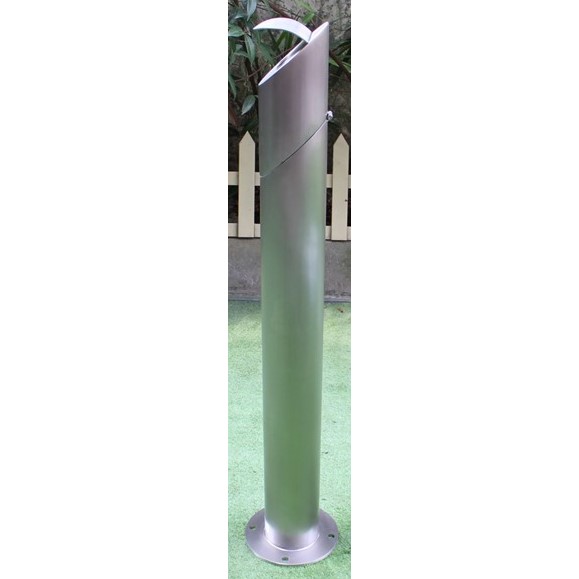

2. The cut on the bottom of the hinged top is now angled to match the angle on the top of the ash urn for a sleeker, more cosmetic look (see #1)
3. The optional rain guard is now convex versus straight for both looks and functionality.

HEIGHT

41”

MATERIAL

4.5”, 6.5” or 8.5” round or 4”x4” square NOTE: other sizes may be available upon request

INTERNAL LINER

Galvanized steel sheet.

MOUNTING OPTIONS

Surface flange mount for bolting to existing concrete or embedded Designate “-F” or “-E” after the size designation for a surface flange mount or embedded mount. NOTE: Ash urns can be made to freestand.

FINISH OPTIONS

T.G.I.C. powder coated or hot dipped galvanized mild steel or stainless steel sheet with a brushed finish. Designate “PC” “-G” or “-S” after the size designation for powder coated, galvanized or stainless steel.

ACCESSORIES

Rain Guard: Designate “-RG”; SS: Cigarette graphic. Designate “-RG” or “G” respectively

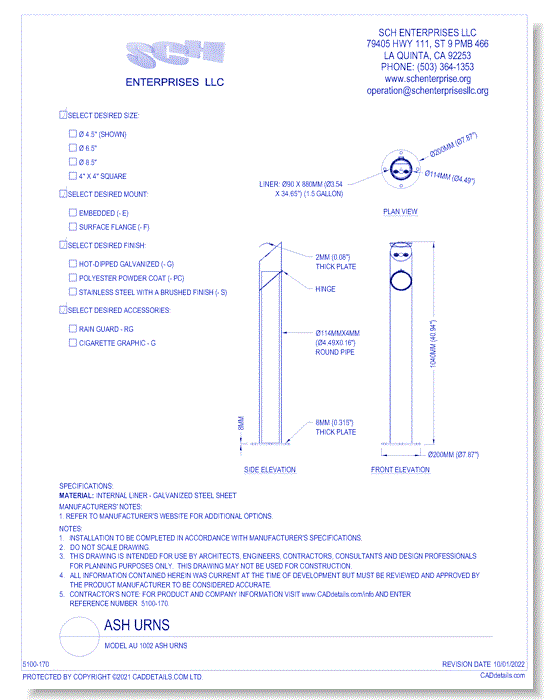

CAD Drawings SCH Enterprises LLC Model AU 1002 Ash Urns
CAD Drawings SCH Enterprises LLC Model AU 1002 Ash Urns
CAD Drawings SCH Enterprises LLC Model AU 1002 Ash Urns
CAD Drawings SCH Enterprises LLC Model AU 1002 Ash Urns
