SCH Enterprises LLC

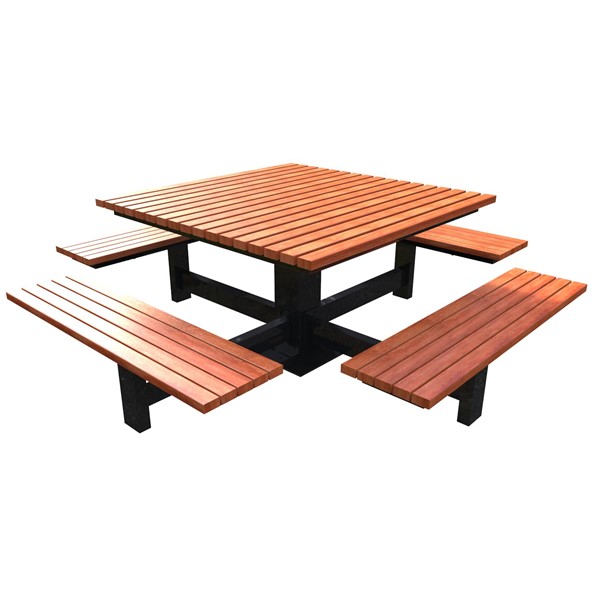

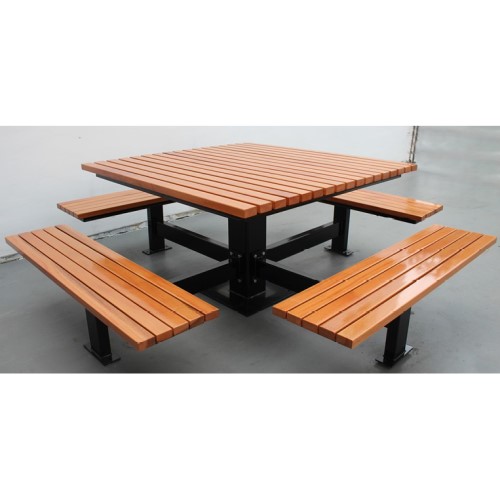

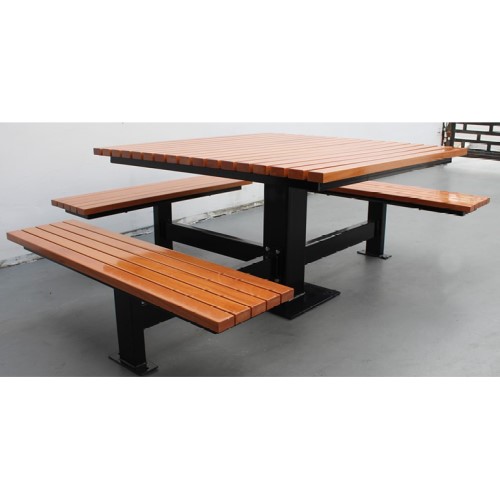

Model Tb 6001-B Picnic Tables With Backed Seats and Model TB 6001-BL Picnic Tables With Backless Seats


MODEL TB 6001-B PICNIC TABLES WITH BACKED SEATS AND MODEL TB 6001-BL PICNIC TABLES WITH BACKLESS SEATS

MODEL

TB6001-B: Table with backed seats
TB6001-BL: Table with backless seats

SEAT PAN MATERIAL OPTIONS

Recycled plastic slats; hardwood; welded wire cloth; solid sheet steel; perforated steel sheet; or customized laser cut or perforated steel sheet. Designate “-RP”, “-HW”, “-WC”, “-SS”, “-PS”, “-ClS” or “CPS” respectively for seating pan material after the model number.

TABLE TOP MATERIAL OPTIONS

Recycled plastic slats; hardwood; welded wire cloth; solid sheet steel; perforated steel sheet; or customized laser cut or perforated steel sheet. Designate “-RP”, “-HW”, “-WC”, “-SS”, “-PS”, “-ClS” or “CPS” respectively for the table top material after the seat pan material designation.

STANDARD SIZES

Standard picnic table top size is 67” square and is available with 1, 2, 3, or 4 bench seats. Please designate “-1”, “-2”, “-3”, or “-4” after the table top material designation for a 1, 2, 3, or 4 bench seat table respectively.

(NOTES: 1.) THE 1, 2, and 3 BENCH SEAT TABLES ARE ADA COMPLIANT; 2.) OTHER SIZE TABLE TOPS MAY BE AVAILABLE UPON REQUEST).

MOUNTING OPTIONS

Permanent flanged surface mounting for bolting to existing concrete, embedded mount. Designate “-F” or “-E” after the table size for a surface mounted or embedded table respectively.

FINISH OPTIONS

Polyester powder coated or stainless steel. Designate “-P” or “-SS” for powder coated or stainless steel after the mounting option.

ACCESSORIES

Umbrellas. Designate “-U” after the finish option.
