Haws Corporation

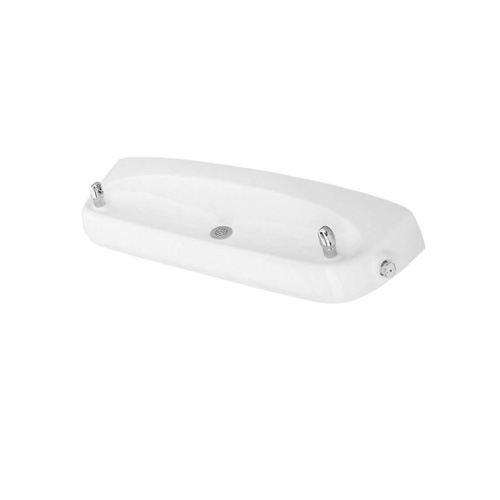

Model 1430: Enameled Iron Wall Mounted Drinking Fountain


The multi-bubbler Haws 1430 enameled iron drinking fountain uses patented stainless steel, push-button activated, valve assemblies allowing for front access stream adjustments as well as cartridge and strainer access. This wall mounted fountain offers the 'only' all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging vandals.

  • 100% lead-free waterways
  • Gleaming white enameled iron construction provides this fountain with a bullet proof durability hidden beneath its elegant appeal
  • Easy maintenance with front access to valve adjustment and cartridge replacement
  • Soft rounded corners prevent mishaps and other accidents that may occur once the fountain is installed
  • Dual bubbler heads locked to main bowl deter vandals and provide efficient water flow for twice the users as single bubbler fountains

Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).

  • Note: Enameled iron bowls are shipped without the hardware mounted. Hardware to be mounted by installer.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

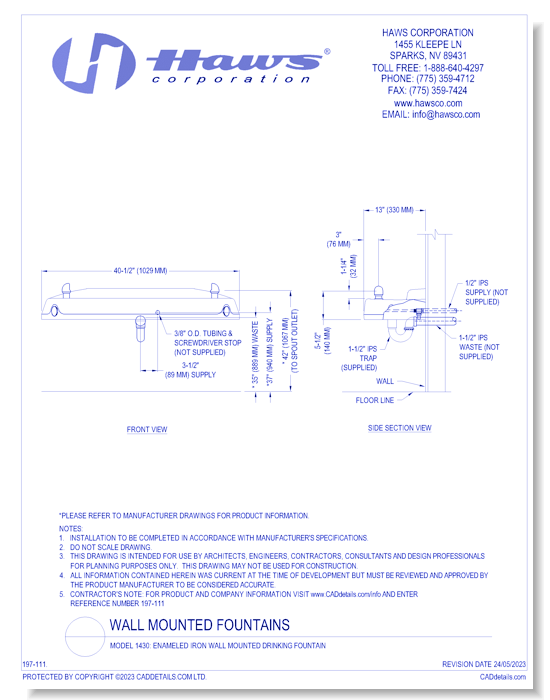

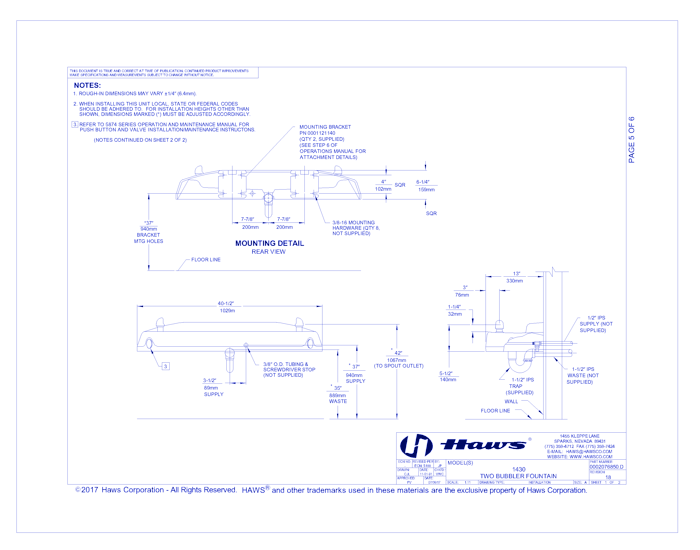

CAD Drawings Haws Corporation Model 1430: Enameled Iron Wall Mounted Drinking Fountain
